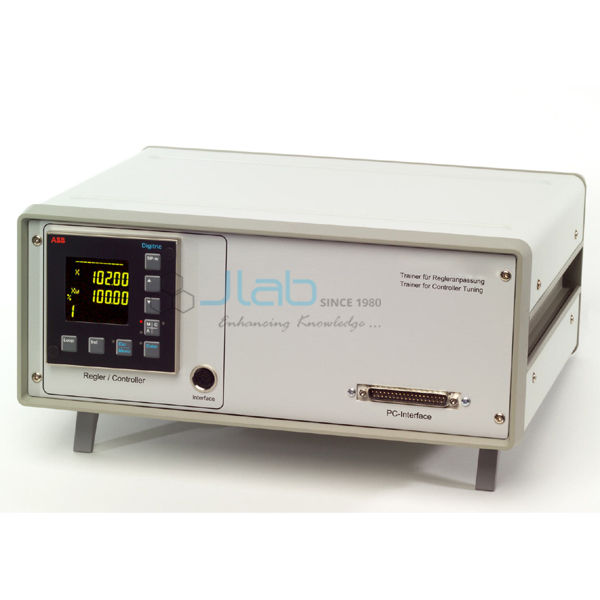

Trainer for Controller Tuning
Product Code : JA-AM-6464
The Trainer for Controller Tuning (SKU JA-AM-6464) is a benchtop trainer on the interaction between a controller and a controlled system, aimed at setting controller parameters so that the closed loop gives the desired response. The controlled system is simulated on a PC rather than built as real hardware, the hardware-in-the-loop principle used in industrial product development. Open and closed loop control, stability, step response and disturbance response are demonstrated. It is supplied by JaincoLab for control engineering laboratories.
Specifications
The trainer pairs a controller with a PC-simulated controlled system using simulation software; the controller model, PC requirements and interface are not listed in the product data and are confirmed on the quotation.
| Product | Trainer for Controller Tuning |
| SKU | JA-AM-6464 |
| Type | Controller tuning trainer, benchtop |
| Principle | Hardware in the loop - controlled system simulated on a PC |
| Topics | Open and closed loop control; stability; step response; disturbance and control response |
Applications of the controller tuning trainer
Students tune P, PI and PID parameters against simulated processes, watch the step and disturbance responses and learn how each parameter affects stability and speed.
- Setting controller parameters for optimum response
- Open and closed loop behaviour
- Stability and step response studies
- Disturbance rejection and set-point response
- Control engineering practicals in B.Tech/B.E. courses
Scope of supply
This listing covers the controller tuning trainer with simulation software. Accessories, spares and quantities are confirmed on the quotation. The PC is confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing for the Trainer for Controller Tuning are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or projects are both supplied.
JaincoLab manufactures and exports laboratory equipment for Ministry of Education programmes, World Bank-funded tenders and United Nations projects, and has executed these supplies successfully in many countries. Contractors bidding for such tenders can contact JaincoLab for specifications, quotations and turnkey tender supply.
Frequently asked questions
Does the trainer use a real process?
No, the controlled system is simulated on a PC - the hardware-in-the-loop principle.
Which concepts are covered?
Open and closed loop control, stability, step response, disturbance and control response.
Is a PC included?
PC requirements and supply are confirmed on the quotation.
How do I request a price?
Share the SKU JA-AM-6464, the quantity and the delivery destination through the contact page or by email to [email protected].
