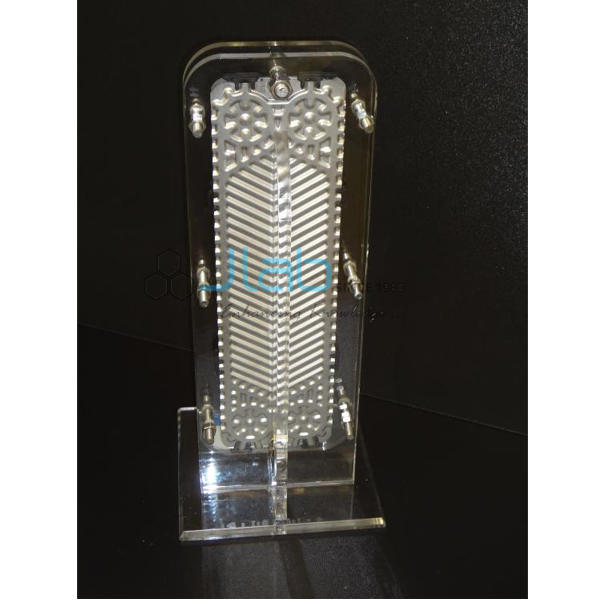

Multi Port Plate Exchanger
Product Code : JA-AM-5941
The Multi Port Plate Exchanger (SKU JA-AM-5941) is a training model of a plate heat exchanger, supplied by JaincoLab for process and chemical engineering teaching. In a plate exchanger the two fluids flow in alternate channels between thin pressed plates, giving a large heat-transfer area in a compact frame, and the ports direct each fluid into its own set of channels.
Specifications
The saved listing gives only the product name, so the model's scale, number of plates, dimensions and materials are confirmed on the quotation.
| Product | Multi Port Plate Exchanger |
| SKU | JA-AM-5941 |
| Equipment represented | Plate heat exchanger with multiple ports |
| Specification | Scale, plate count, size and materials confirmed on the quotation |
Applications of the plate exchanger model
The model is used to explain how plate exchangers achieve high heat transfer in a small space, how the port arrangement routes hot and cold fluids through alternate channels, and how the plate pack is opened for cleaning.
- Heat transfer lessons in chemical and food engineering
- Dairy, food and process plant operator training
- Maintenance training on plate packs
- Comparison with shell-and-tube exchanger models
Scope of supply and ordering
The listing covers one Multi Port Plate Exchanger as described above, supplied by JaincoLab. Its scale, dimensions, materials and whether it is sectioned or dismantlable are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Multi Port Plate Exchanger are confirmed on each quotation for the quantity ordered and the delivery destination. Single classroom units, sets for several institutions and bulk tender quantities are all quoted by JaincoLab.
Frequently asked questions
What does the plate exchanger model show?
It is a training model of the equipment named; the detail it shows is confirmed on the quotation.
Is it a working unit?
It is listed as a training model; whether it is static, sectioned or operable is confirmed on the quotation.
Who uses these models?
Chemical engineering departments, polytechnics and process-plant training centres.
