Vertical and Horizontal Condenser
Product Code : JA-HTLE-9226

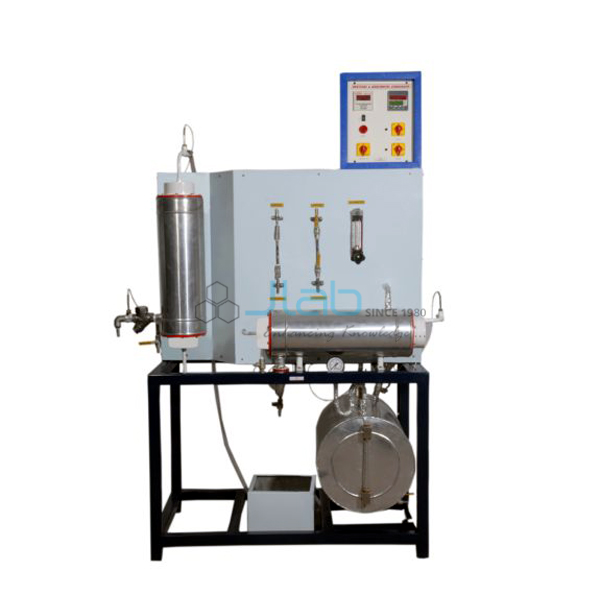

The Vertical and Horizontal Condenser (SKU JA-HTLE-9226) lets students compare condensation in a vertical and a horizontal shell-and-tube condenser, operated one at a time. Steam flows through the stainless steel shell and cooling water flows inside the stainless steel tubes; the condensate leaves through steam traps and is collected in a measuring cylinder. This vertical and horizontal condenser trainer has its own stainless steel steam generator with level indicator, pressure gauge and safety valve.
Specifications
The condenser trainer is specified by two condensers with stainless steel shells of 100 mm inner diameter and 500 mm length, tubes of 12.7 mm OD and 500 mm length, ceramic wool insulation with aluminium foil cladding, a nichrome-heated steam generator and a rotameter, as tabled.
| Product | Vertical and Horizontal Condenser |
| SKU | JA-HTLE-9226 |
| System | Steam to water |
| Condensers | 2 nos. (vertical and horizontal); ceramic wool insulation, aluminium foil cladding |
| Shell | Stainless steel, inner dia. 100 mm, length 500 mm (approx.) |
| Tubes | Stainless steel, OD 12.7 mm, length 500 mm |
| Steam generator | Stainless steel with level indicator, pressure gauge, safety valve and drain; insulated |
| Heaters | Nichrome wire |
| Condensate | Steam traps; measuring cylinder and stopwatch |
| Water flow measurement | Rotameter; valves for cold-fluid flow |
| Temperature measurement | Sensors at inlet and outlet of hot and cold fluids |
Experiments with the vertical and horizontal condenser
The trainer is used to find and compare the overall heat transfer coefficient and the condensing film coefficient for the same steam condensing on vertical and on horizontal tubes.
- Overall heat transfer coefficient of each condenser
- Film coefficient of condensation, vertical and horizontal
- Comparison of condenser orientation
- Condensation practicals in mechanical and chemical engineering
Scope of supply and ordering
The listing covers the Vertical and Horizontal Condenser with both condensers, steam generator, steam traps, rotameter, valves, temperature sensors and measuring cylinder. The user provides water, drain and the electrical connection. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single set-ups and complete heat transfer laboratories for engineering colleges, polytechnics and ITIs, including tender orders, are supplied.
Frequently asked questions
Can both condensers run together?
They are operated one at a time for a comparative study.
What are the shell and tube sizes?
Shell about 100 mm inner diameter x 500 mm; tubes 12.7 mm OD x 500 mm, all stainless steel.
How is condensate measured?
It is collected from steam traps in a measuring cylinder and timed with a stopwatch.
