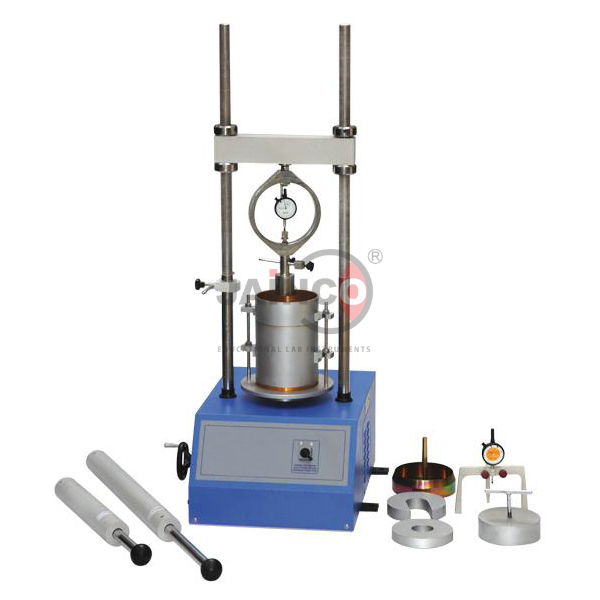

Motorised CBR Machine
Product Code : JA-SM-8875
The motorised CBR machine performs the California Bearing Ratio test for the bearing capacity of soils on a twin column load frame of 50 kN capacity with a motorised drive. It gives 255 mm horizontal and up to 800 mm vertical clearance, a 133 mm diameter platen with 105 mm of travel and two selectable load speeds (SKU JA-SM-8875).
Specifications
Frame data as listed:
| Product | Motorised CBR Machine |
| SKU | JA-SM-8875 |
| Capacity | 50 kN |
| Frame | Twin column, motorised drive |
| Horizontal clearance | 255 mm (10 inch) |
| Vertical clearance | 800 mm (31.5 inch) maximum |
| Platen | 133 mm (5.24 inch) diameter |
| Platen travel | 105 mm (4.13 inch) |
| Load speeds | Selectable: 1.27 mm or 1.0 mm |
| Mould, piston and load measuring device | Confirmed on the quotation |
Scope of supply and ordering
The listing covers the motorised twin column CBR load frame, supplied by JaincoLab; the mould and measuring accessories are specified on the quotation. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
What is the load capacity?
50 kN, on a twin column frame with a motorised drive.
What specimen clearance does it give?
255 mm horizontally and up to 800 mm vertically, with 105 mm of platen travel.
Which load speeds are available?
Two selectable speeds: 1.27 mm and 1.0 mm.
