Direct Shear Apparatus
Product Code : JA-SM-8883

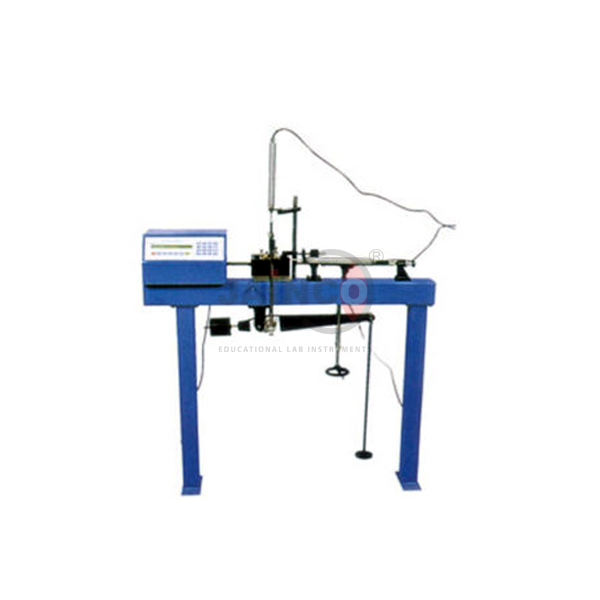

The direct shear apparatus determines the shear strength of soil specimens, consolidated and drained, undisturbed or remoulded, with a closed-loop motor and epicycloid reducers driving the shear box. It accepts round specimens of 60 and 100 mm diameter and square specimens of 60 x 60 and 100 x 100 mm, and applies up to 5000 N of shear force at speeds from 0.00001 to 9.99999 mm/min (SKU JA-SM-8883).
Specifications
Machine data from the listing:
| Product | Direct Shear Apparatus |
| SKU | JA-SM-8883 |
| Specimens | 60 and 100 mm diameter; 60 x 60 and 100 x 100 mm square |
| Maximum shear force | 5000 N over the whole speed range |
| Shear speed | 0.00001 to 9.99999 mm/min |
| Display resolution | 0.00001 mm for speed and displacement |
| Vertical load | Direct up to 500 N; with 10:1 lever arm up to 5500 N |
| Drive | Closed-loop motor with epicycloid reducers |
| Box carriage | Ball track with antifriction system |
| Controls | Keyboard and alphanumeric display with memory; display and pilot lamps for faults and alarms |
| Power supply | 230 V AC, single phase, 50 Hz |
| Not included | Shear box, hollow punch and tamper |
Test functions
- Automatic internal check and position reset at the start of each test
- Test data entered and stored in stand-by without disturbing the specimen
- Maximum shear box travel can be set to stop the test automatically
- Separate return speed for residual shear testing
Scope of supply and ordering
The listing covers the direct shear machine for a 230 V supply; the shear box, hollow punch and tamper are ordered separately to suit the specimen size. Supplied by JaincoLab. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
Is the shear box included?
No. The shear box, hollow punch and tamper are not part of the standard supply and are ordered separately.
What specimen sizes can it take?
Round specimens of 60 and 100 mm diameter and square specimens of 60 x 60 and 100 x 100 mm.
How is the vertical load applied?
Directly up to 500 N, or through a 10:1 lever arm up to 5500 N.
Can it run residual shear tests?
Yes, a different return speed can be entered for residual shear.
