Marcet Boiler
Product Code : JA-FMAHLE-9982

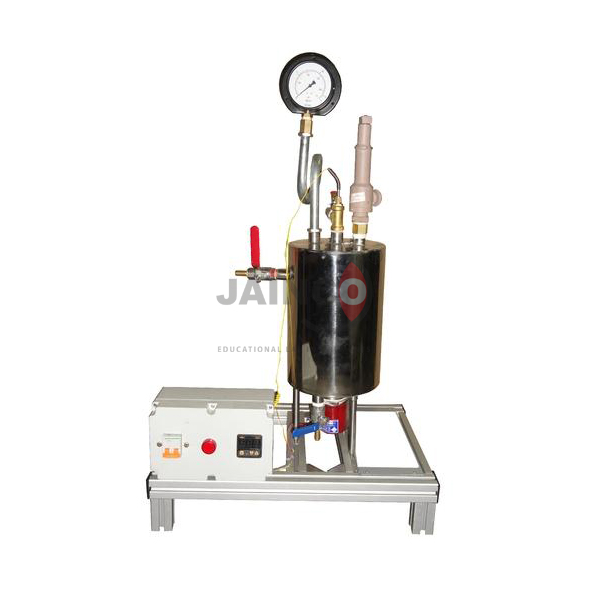

The Marcet Boiler (SKU JA-FMAHLE-9982) is used to measure the vapour pressure curve of saturated steam, that is, how the boiling temperature of water rises with pressure. A 2 litre stainless steel boiler with an insulating jacket is heated by a 2 kW heater while pressure and temperature are read together. JaincoLab supplies this Marcet boiler to mechanical engineering colleges and polytechnics for thermodynamics practicals.
Specifications
The boiler holds 2 litres, is made of stainless steel and has an insulating jacket; it is heated by a 2 kW heater, with a Bourdon tube gauge from -1 to 24 bar, a digital temperature display, a 200 °C temperature limiter and a 20 bar safety valve.
| Product | Marcet Boiler |
| SKU | JA-FMAHLE-9982 |
| Boiler | Stainless steel, 2 litres, with insulating jacket |
| Heater | 2 kW |
| Pressure gauge | Bourdon tube, -1 to 24 bar |
| Temperature display | Digital |
| Measuring ranges | Pressure 0-20 bar; temperature 0-250 °C |
| Temperature limiter | 200 °C |
| Safety valve | 20 bar |
Applications of the Marcet boiler
The Marcet boiler lets students record pairs of saturation pressure and temperature as the water is heated and compare them with steam tables, which is a standard experiment on the properties of steam in thermodynamics and thermal engineering courses.
- Measuring the vapour pressure curve of saturated steam
- Comparing measured saturation temperatures with steam table values
- Studying the pressure-temperature relationship of a pure substance
- Thermodynamics practicals in B.E./B.Tech and diploma mechanical engineering courses
Scope of supply and ordering
The listing covers the Marcet boiler with its heater, Bourdon tube pressure gauge, digital temperature display, temperature limiter and safety valve. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The boiler is supplied by JaincoLab singly or with other thermodynamics units for colleges and tender orders.
Frequently asked questions
What is the pressure range?
Measurements cover 0 to 20 bar; the Bourdon tube gauge reads from -1 to 24 bar.
What is the boiler capacity?
2 litres, in stainless steel with an insulating jacket.
How is the boiler heated?
By a 2 kW heater, with a temperature limiter set at 200 °C and a 20 bar safety valve fitted.
Related products
- Separating and Throttling Calorimeter
- Change of State of Gases
- Fundamentals of Temperature Measurement
- Fundamentals of Pressure Measurement
Steam, gas and measurement set-ups are listed in the JaincoLab fluid mechanics lab equipment range.
Request a quote
To order the Marcet Boiler, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
