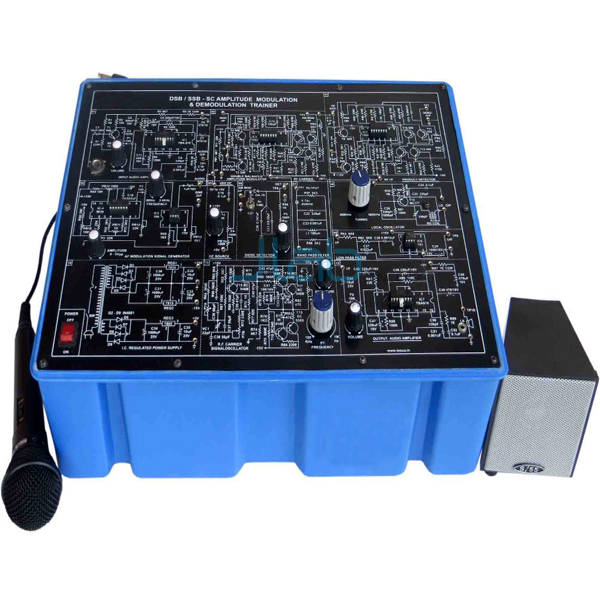

DSB and SSB-SC Amplitude Modulation and Demodulation Trainer
Product Code : JA-CT-1495
The DSB and SSB-SC amplitude modulation and demodulation trainer puts a complete AM system on a single 300 x 400 mm PCB. Students generate AM, DSB-SC and SSB-SC signals, measure the modulation index, and demodulate with a diode (envelope) detector, square-law detection and product detectors, using a built-in 300 Hz-3.4 kHz AF generator, a 100 kHz-1 MHz RF carrier oscillator and a microphone input (SKU JA-CT-1495).
Specifications
Built-in sections and ratings:
| Product | DSB and SSB-SC Amplitude Modulation and Demodulation Trainer |
| SKU | JA-CT-1495 |
| PCB | Single board, 300 x 400 mm |
| Regulated supplies | ±15 V DC and +5 V DC at 100 mA |
| AF generator | Sine, 300 Hz to 3.4 kHz, 0 to 5 Vpp |
| RF carrier oscillator | 100 kHz to 1 MHz, 0 to 10 Vpp |
| Local oscillator | 400 kHz to 500 kHz |
| Band pass filter | 452 kHz to 458 kHz |
| Variable DC source | -5 to +5 V DC, to show the effect of DC on the output |
| Circuit blocks | Double balanced amplitude modulator; diode detector; product detector; low pass filter; input and output audio amplifiers (output with volume control) |
| Accessories | Dynamic microphone with 4 mm jack pin; loudspeaker in a baffle box with 2 m lead and 2 mm banana pins |
| Power | 230 V AC, 50 Hz; ON/OFF switch, fuse and jewel light |
| Other apparatus required | CRO 20 MHz |
AM experiments
The listed studies are:
- AM generation with the audio generator and measurement of modulation index
- AM demodulation with a diode (envelope) detector and by square-law detection
- Voice AM modulation and demodulation using the microphone
- Effect of a DC input on the AM output
- DSB-SC generation and demodulation with a product detector
- SSB-SC generation and demodulation with a product detector
Scope of supply and ordering
The listing covers the AM trainer board with its microphone, loudspeaker box and operating instructions, supplied by JaincoLab. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
Which modulation types does the AM trainer cover?
Conventional AM, DSB-SC and SSB-SC, each with its demodulator.
Can voice be transmitted on the trainer?
Yes. A dynamic microphone and an input audio amplifier allow voice AM modulation and demodulation, heard on the loudspeaker box.
What carrier range is available?
An RF carrier oscillator from 100 kHz to 1 MHz with 0 to 10 Vpp output, plus a 400-500 kHz local oscillator.
