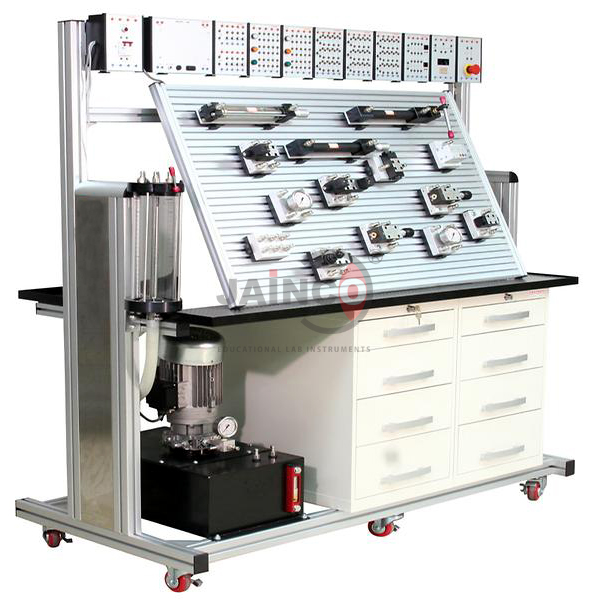

Industrial Pneumatics Training Equipment
Product Code : JA-HAP-8907
The industrial pneumatics training equipment is a mobile trolley workstation for building pneumatic circuits, with two circuit building plug boards of about 1100 x 700 mm and a kit of plug-in valves, cylinders and fittings. The trolley measures about 1210 x 750 x 1450 mm and has two lockable five-drawer storage cabinets on four heavy-duty castors (SKU JA-HAP-8907).
Specifications
Trolley and component list as given:
| Product | Industrial Pneumatics Training Equipment |
| SKU | JA-HAP-8907 |
| Trolley size | Approx. 1210 (L) x 750 (W) x 1450 (H) mm |
| Plug boards | 2, approx. 1100 x 700 mm, powder-coated 16 swg steel, mounting holes with rubber grommets, 2 mm shrouded sockets for electrical distribution |
| Storage | 2 lockable steel cabinets, 5 drawers each (1 x 66, 2 x 85, 1 x 130, 1 x 200 mm deep, approx.) |
| Castors | 4 heavy duty, rubber tyred; 2 swivel and lockable |
| Air supply parts | Air service unit (filter/pressure regulator) with on/off valve and pressure gauge; 6-way manifold with check fittings; stainless steel air reservoir; pressure gauge |
| Cylinders | 1 single acting, 16 mm bore, 50 mm stroke; 2 double acting, 16 mm bore, 100 mm stroke, magnetic piston |
| Directional valves | 4 x 3/2 push button; 1 x 3/2 toggle lever; 1 x 5/2 toggle lever; 1 x 5/2 pilot/spring; 3 x 5/2 pilot/pilot; 1 x 5/3 pilot/pilot, closed centre |
| Roller lever valves | 4 x 3/2 (2 in-stroke, 2 out-stroke) on adjustable base plates |
| Logic and flow valves | 1 x 3/2 adjustable timer; 2 throttle/check; 1 quick exhaust; 4 shuttle (OR); 2 two-pressure (AND) |
| Other items | Visual indicator; 10 push-fit tees; 10 push-fit plugs; 15 m of 4 mm and 5 m of 6 mm polyurethane tubing |
| Mounting | Components on 4-pin plug-in base plates, connections for 4 mm tubing, silencers on exhaust ports |
Scope of supply and ordering
The listing covers the trolley with both plug boards and cabinets and the pneumatic component kit listed above, supplied by JaincoLab; the compressed air source is not listed. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
How many cylinders are included?
Three: one single acting cylinder (16 mm bore, 50 mm stroke) and two double acting cylinders (16 mm bore, 100 mm stroke) with magnetic pistons.
What tubing is supplied?
15 m of 4 mm and 5 m of 6 mm outside diameter polyurethane tubing, with push-fit tees and plugs.
How are the components mounted?
On 4-pin plug-in base plates that fit the plug boards, with 2 mm shrouded plugs for electrical connections.
