Fluid Friction Measurement
Product Code : JA-HAP-8913

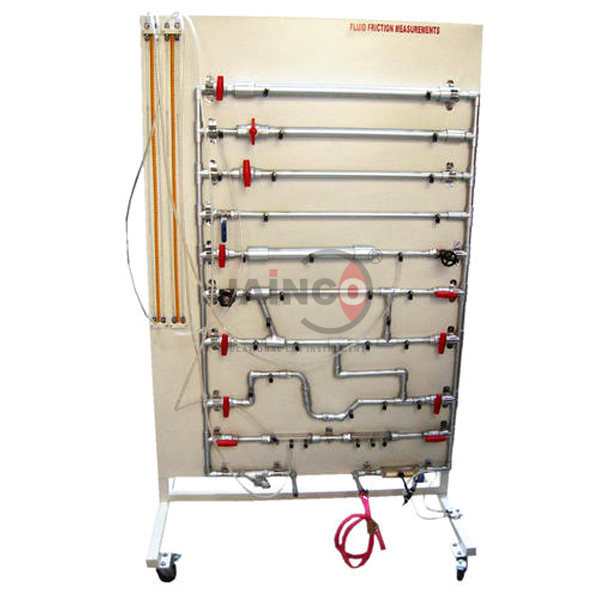

The fluid friction measurement apparatus measures friction losses in pipes and the loss factors of valves and fittings such as a tee, elbow, Y junction, gate valve and globe valve. Flow is measured with a venturi tube and an orifice plate through pressure differential transmitters, and a traversing Pitot-static tube gives the velocity profile across the pipe (SKU JA-HAP-8913).
Specifications
Measuring equipment listed:
| Product | Fluid Friction Measurement |
| SKU | JA-HAP-8913 |
| Fittings and valves | Tee, elbow, Y junction, gate valve, globe valve |
| Flow measurement | Venturi tube and orifice plate |
| Pressure measurement | Pressure differential transmitters |
| Velocity profile | Traversing Pitot-static tube |
| Temperature | J type thermocouple |
| Roughened pipe | Artificially roughened pipe for friction factor at different Reynolds numbers |
| Software | Program calculating Reynolds number, friction factor, velocity, losses, flow rate and K factors |
| Layout | Vertical panel for use with a gravimetric or volumetric hydraulics bench |
| Documentation | User guide |
Experiments
- Friction losses in straight pipes and the K factors of valves and fittings
- Velocity profile and flow coefficients by traversing the Pitot tube
- Flow rate against pressure differential for the venturi and orifice meters
- Friction factor through the laminar to turbulent transition, compared with Nikuradse results and a Moody chart
Scope of supply and ordering
The listing covers the fluid friction panel with its pipes, fittings, meters, transmitters, Pitot tube and software, supplied by JaincoLab; the hydraulics bench that supplies the water is a separate item. Order quantity, packing and delivery time are set out on each quotation.
