Hydraulics Bench
Product Code : JA-HAP-8912

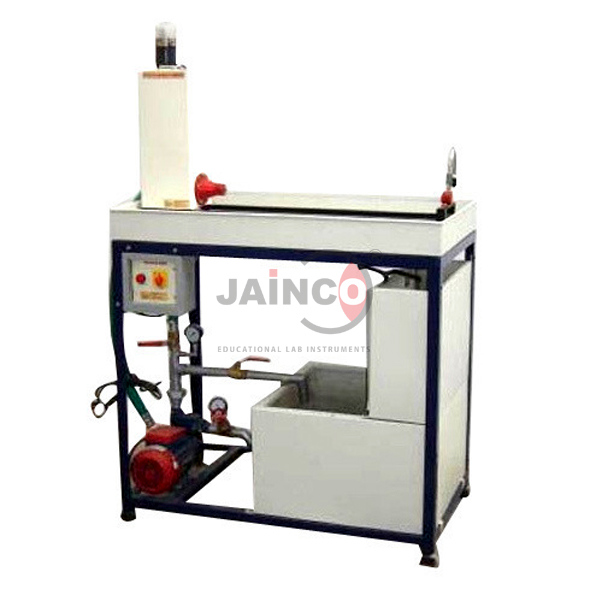

The hydraulics bench is a portable, self-contained service module that supplies water to a range of fluid mechanics accessories and measures their flow. It circulates water with a 1 HP pump, measures flow with a 40-litre measuring tank and an electronic stop watch, and has stainless steel tanks and top tray on a painted structure (SKU JA-HAP-8912).
Specifications
Bench specification as listed:
| Product | Hydraulics Bench |
| SKU | JA-HAP-8912 |
| Type | Portable, self-contained service module for fluid mechanics accessories |
| Water circulation | 1 HP pump |
| Flow measurement | Measuring tank, 40 litres; electronic stop watch |
| Tanks and top tray | Stainless steel |
| Control panel | On-off switch, mains indicator |
| Structure | Painted |
| Manual | English instruction manual |
| Sump tank capacity | Confirmed on the quotation |
Experiments with the bench accessories
With the matching accessories, the bench is used for:
- Flow over notches
- Flow through orifices and mouthpieces
- Friction losses in pipe lines and losses in pipe fittings
- Bernoulli's theorem
- Flow measurement by venturi meter and orifice meter
- Impact of a jet on vanes
- Pressure measurement and the Pitot tube
- Free vortex
Scope of supply and ordering
The listing covers the hydraulics bench itself, supplied by JaincoLab; the experiment accessories are separate items chosen with the order. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
How is the flow rate measured?
With the 40-litre measuring tank and the electronic stop watch.
What pump does the bench use?
A 1 HP water circulation pump.
Are the experiment accessories included?
The listing is for the bench; accessories such as the flow meter and cavitation demonstrations are separate items.
