Flow Meter Demonstration
Product Code : JA-HAP-8918

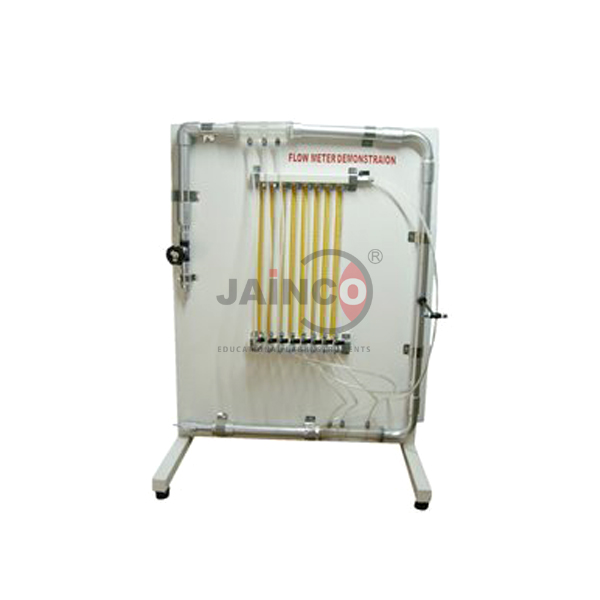

The flow meter demonstration compares three flow meters, a venturi meter, a variable area meter and an orifice plate, installed in series on a support frame that stands on the hydraulics bench. Pressure tappings on each meter connect to an eight-tube manometer bank, so head loss and pressure drop can be measured and each meter calibrated against the bench measuring tank (SKU JA-HAP-8918).
Specifications
Parts listed:
| Product | Flow Meter Demonstration |
| SKU | JA-HAP-8918 |
| Flow meters | Venturi meter, variable area meter, orifice plate, in series |
| Flow control | Flow control valve |
| Manometer | 8-tube bank with manifold and air bleed valve |
| Manometer pressurisation | Hand pump |
| Mounting | Support framework standing on the hydraulics bench top |
| Water supply and calibration | From the hydraulics bench and its volumetric measuring tank |
Experimental capabilities
- Direct comparison of flow measurement by venturi meter, variable area meter and orifice plate
- Calibration of each flow meter with the volumetric measuring tank of the bench
- Head loss characteristics of each meter from the pressure tappings
- Comparison of pressure drops across each device
Scope of supply and ordering
The listing covers the flow meter circuit, manometer bank, hand pump and support frame, supplied by JaincoLab; the hydraulics bench is a separate item. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
Which flow meters are compared?
A venturi meter, a variable area meter and an orifice plate, fitted in series.
How many manometer tubes are there?
Eight, on a bank with a manifold, air bleed valve and hand pump for pressurisation.
Does it need a hydraulics bench?
Yes, the bench supplies the water and its volumetric tank is used to calibrate each meter.
