Axial Fan Demonstration Unit
Product Code : JA-FMAHLE-9968

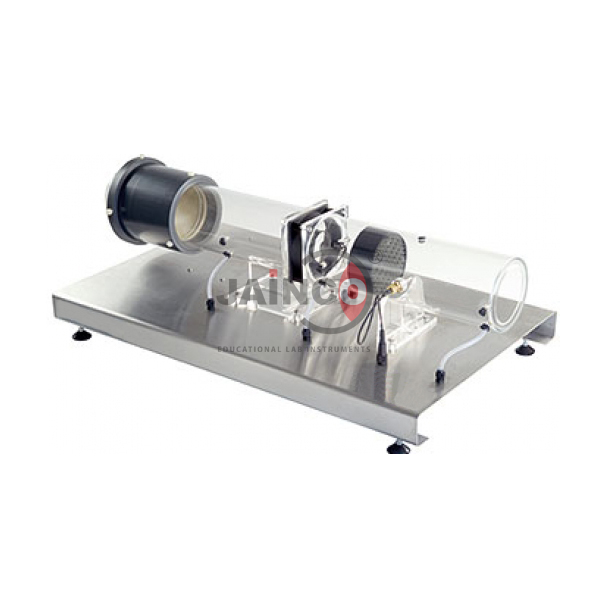

The Axial Fan Demonstration Unit (SKU JA-FMAHLE-9968) is a small-scale fan set-up for measuring the performance of an axial fan. The fan sits on a stainless steel plinth between transparent inlet and outlet ducts, so its construction can be seen, and a calibrated orifice plate on the discharge measures the air flow. JaincoLab supplies this axial fan demonstration unit to engineering colleges and polytechnics for fluid mechanics and turbomachinery practicals.
Specifications
The listed ratings are a maximum flow of 38 l/s (typical), a maximum head of 0.06 kPa, a maximum fan speed of 2700 rpm and a 5 W motor rating; fan speed is set by a modulated DC supply with current sensing, and a manual aperture varies the flow.
| Product | Axial Fan Demonstration Unit |
| SKU | JA-FMAHLE-9968 |
| Max. flow rate | 38 l/s typical |
| Max. head | 0.06 kPa |
| Max. fan speed | 2700 rpm |
| Motor power rating | 5 W |
| Ducts | Transparent inlet and outlet ducts |
| Flow measurement | Calibrated orifice plate on the discharge |
| Sensors | Fan head pressure, orifice plate pressure (flow rate), fan speed, air temperature |
| Speed control | Modulated DC supply with current sensing for fan power |
| Flow control | Manually adjustable aperture |
| Computer link | PC link (computer not supplied) via an interface console listed as an essential accessory; USB lead, software with set-up and teaching instructions, data logging and graphs |
Applications of the axial fan demonstration unit
The axial fan demonstration unit lets students throttle the fan with the aperture and record pressure, flow, speed and power, so they can plot the fan characteristic and compare an axial fan with a centrifugal fan in turbomachinery practicals.
- Plotting the pressure-flow characteristic of an axial fan
- Measuring fan power from the DC supply current
- Studying the effect of fan speed on performance
- Comparing axial and centrifugal fan performance
Scope of supply and ordering
The listing covers the axial fan unit with transparent ducts, orifice plate, adjustable aperture, sensors and software. The interface console is an essential accessory and, with the computer, is confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. The unit is supplied by JaincoLab singly or with the other fan, pump and turbine units for colleges and tender orders.
Frequently asked questions
What are the fan ratings?
Maximum flow 38 l/s (typical), maximum head 0.06 kPa and maximum speed 2700 rpm.
How is air flow measured?
With a calibrated orifice plate on the discharge and an electronic pressure sensor.
Can the fan construction be seen?
Yes. The inlet and outlet ducts are transparent.
