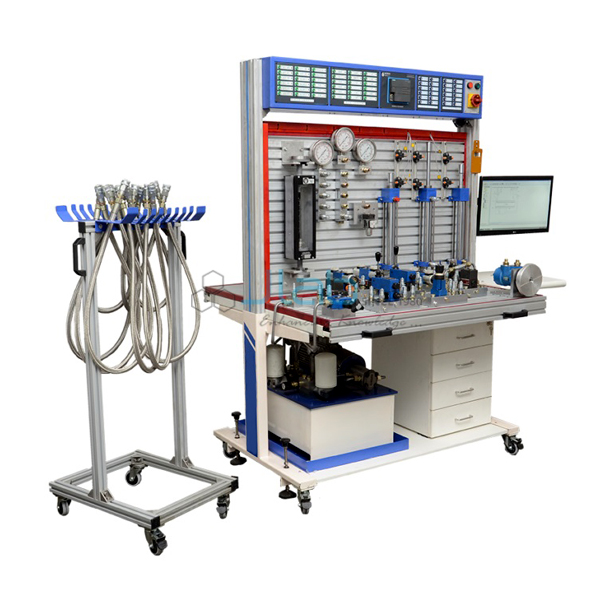

Hydraulic Trainer Kit
Product Code : JA-CTM-9062
The Hydraulic Trainer Kit (SKU JA-CTM-9062) is a self-contained mobile hydraulic trainer kit for building and testing standard hydraulic circuits. A castored trolley carries the tank with filter and breather, a gear pump driven by a single-phase flange mounted motor, pressure relief, flow control, sequence and direction control valves, single and double acting cylinders and a hydraulic motor. A PLC with software and a help file, plus a control panel for student circuits, extends it to electro-hydraulic work. JaincoLab manufactures it for fluid power labs.
Specifications
The kit is a mobile trolley unit with hydraulic tank, gear pump, bell housing, flexible coupling and single-phase motor, a full set of pressure, flow, sequence and direction control valves, actuators, hoses with quick couplings and a PLC.
| Product | Hydraulic Trainer Kit |
| SKU | JA-CTM-9062 |
| Construction | Trolley with frame and caster wheels; self-contained mobile unit |
| Power unit | Hydraulic tank with filter and breather; gear pump; bell housing; flexible coupling; single-phase flange mounted electric motor |
| Pressure and flow valves | Pressure relief valve; flow control valve; pressure sequence valve; needle valve; throttle valve |
| Direction and check valves | 4/3 way manually operated direction control valve; check valve; pilot operated check valve |
| Actuators | Single acting cylinder; double acting cylinder; hydraulic motor |
| Instrumentation and connections | Pressure gauges; hoses; quick couplings with special fittings |
| Control | PLC with software and help file; control panel for student circuits |
| Add-on | Pneumatically operated models available as additional supply |
Experiments on the hydraulic trainer kit
The kit covers a standard hydraulics practical list, from relief valve setting and direction control to speed control, sequencing and regenerative circuits.
- Pressure build-up and relief valve pressure setting
- Operation of single and double acting cylinders and a hydraulic motor with a 4/3 way direction control valve
- Sequence valve study and sequencing of cylinders and motor
- Meter-in, meter-out and bleed-off speed control circuits
- Throttle valve pressure-flow characteristics and the pressure reducing valve
- Pilot operated check valve circuits and the regenerative circuit
Scope of supply and ordering
The listing covers the trolley-mounted power unit, the valves, cylinders, hydraulic motor, gauges, hoses, quick couplings, control panel and PLC with software. Pneumatic models and hydraulic oil are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of kits and any pneumatic add-ons and the delivery destination. Single kits and complete fluid power labs for colleges, polytechnics and tenders are supplied.
Frequently asked questions
How many experiments does it cover?
Seventeen standard experiments are listed, from relief valve setting to regenerative and sequence circuits.
Is it mobile?
Yes. The whole unit sits on a trolley with frame and caster wheels.
Does it include PLC control?
Yes. A PLC with software and a help file is included, with a control panel for student circuits.
Related products
See the complete CNC and automation trainer range for hydraulic, pneumatic, PLC and CNC trainers from JaincoLab.
Request a quote
To order the Hydraulic Trainer Kit, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CTM-9062.
