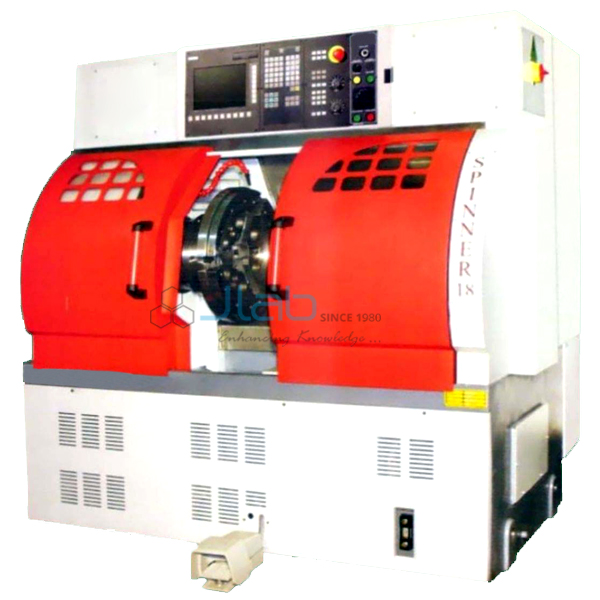

Spinner 18
Product Code : JA-CTM-9050
The Spinner 18 (SKU JA-CTM-9050) is a CNC turning centre built for high-torque turning of medium-diameter components. Its big-bore spindle accepts larger jobs through the spindle bore, and the robust structure supports good surface finish and metal-cutting capability. AC digital drives, linear motion guideways on X and Z and an 8-station bi-directional turret make this big-bore CNC turning centre suitable for industrial-level training. It is supplied by JaincoLab with standard features and a range of options.
Specifications
The published data for this model lists standard features rather than capacities: a big-bore high-torque spindle, AC digital drives, linear guideways and an 8-station bi-directional turret; bore size, swing and spindle power are confirmed on the quotation.
| Product | Spinner 18 |
| SKU | JA-CTM-9050 |
| Machine type | CNC turning centre with big-bore spindle |
| Standard features | AC digital spindle drive; AC digital servo drive for both axes; linear motion guideways for X and Z; 8 station bi-directional turret; 3 boring bar holders; 1 axial tool holder; coolant system; centralised and programmable lubrication; lube oil collector; air-conditioned electrical panel with controlled temperature, humidity and dust-free electronics |
| Optional accessories | Hydraulically operated tailstock; rotating centre for tailstock; rear or side chip conveyor; bar feeder with bar puller; hydraulic collet chuck; Renishaw probe for auto tool setting; auto door; servo turret with live tools; part catcher; reduction sleeves; tooled-up machine to customer need |
Applications of the Spinner 18 big-bore CNC turning centre
The big-bore spindle lets trainees turn larger bar and tube stock passed through the spindle, alongside standard medium-diameter chuck work.
- Advanced CNC turning practicals in mechanical and production engineering courses
- High-torque turning of medium-diameter components
- Bar work through the big-bore spindle, with the optional bar feeder
- Live-tool and probing exercises with the optional equipment
Scope of supply and ordering
The listing covers the Spinner 18 CNC turning centre with the standard features in the table. Optional accessories such as the hydraulic tailstock, chip conveyor, bar feeder, collet chuck, probe, auto door and live-tool turret are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the options selected and number of machines and the delivery destination. Single machines and orders for training centres and tenders are supplied.
Frequently asked questions
What is the difference from the Spinner 15?
The Spinner 18 has a big-bore spindle for larger jobs through the bore and is aimed at high-torque requirements.
What turret does it have?
An 8-station bi-directional turret with 3 boring bar holders and 1 axial tool holder.
Which options are offered?
Hydraulic tailstock, chip conveyor, bar feeder, hydraulic collet chuck, Renishaw probe, part catcher, auto door and a servo turret with live tools.
