Heat Transfer Demonstrator
Product Code : JA-AM-6494

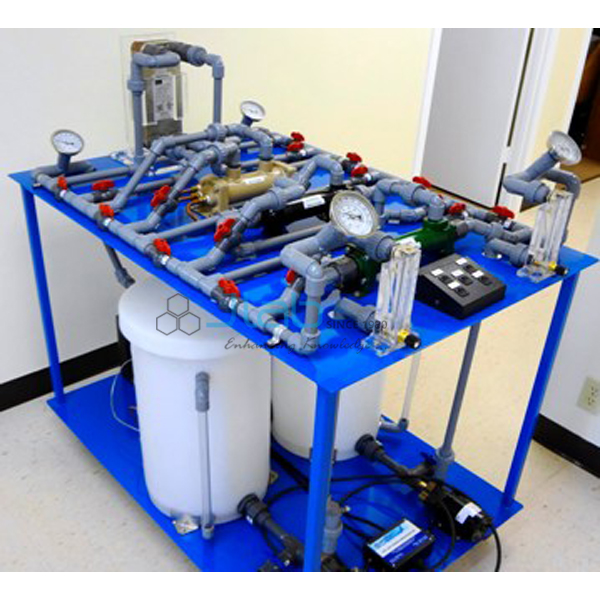

The Heat Transfer Demonstrator (SKU JA-AM-6494) is a self-contained unit for showing how heat exchanger efficiency changes with exchanger design, material of construction, flow direction or pattern and flow velocity. Hot and cold fluids are circulated by two pumps from a water heater and a refrigerant-type water chiller, each with its own storage tank, and manifolded valves allow flows to be reversed. Flow and temperature indicators and controllers are built in, on a metal frame with casters. It is supplied by JaincoLab for heat transfer and process laboratories.
Specifications
The demonstrator has two pumps for hot and cold fluid, manifolded valving for reverse flows, a water heater with storage tank, a refrigerant water chiller with storage tank and flow and temperature indicators and controllers; the exchangers supplied, heater and chiller ratings are not listed in the product data and are confirmed on the quotation.
| Product | Heat Transfer Demonstrator |
| SKU | JA-AM-6494 |
| Frame | Metal structure with casters |
| Pumps | 2 - hot fluid and cold fluid |
| Flow arrangement | Manifolded valving for parallel or reverse (counter) flow |
| Hot side | Water heater with storage tank |
| Cold side | Refrigerant-type water chiller with storage tank |
| Instruments | Flow and temperature indicators and controllers |
Experiments with the heat exchanger demonstrator
Students run hot and cold water through the exchangers in parallel and counter flow at different velocities, record temperatures and compare heat duty and effectiveness.
- Parallel flow versus counter flow heat exchange
- Effect of flow velocity on heat transfer
- Comparing exchanger designs and materials
- Overall heat transfer coefficient and effectiveness
- Heat transfer and process operator training
Scope of supply and ordering
This listing covers the heat transfer demonstrator with pumps, heater, chiller, tanks, valving and instruments as described. Accessories, spares and quantities are confirmed on the quotation. The exchanger types fitted and the power supply are confirmed on the quotation.
Packing, lead time and any minimum order for the Heat Transfer Demonstrator are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
What does the demonstrator compare?
Heat exchanger efficiency by design, material, flow direction or pattern and flow velocity.
How are hot and cold fluids supplied?
From a water heater and a refrigerant water chiller, each with a storage tank, by two pumps.
Can flow direction be reversed?
Yes, manifolded valves allow reverse flows.
Related products
- Heat Exchanger Process Control System
- Process Training Unit
- Flash Drum Separator Trainer
- Manual Cooling Tower
More trainers and training laboratory units are listed in the training workshop labs range from JaincoLab.
Request a quote
Send an enquiry for the Heat Transfer Demonstrator (SKU JA-AM-6494) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
