Cake and Depth Filtration
Product Code : JA-AM-6486

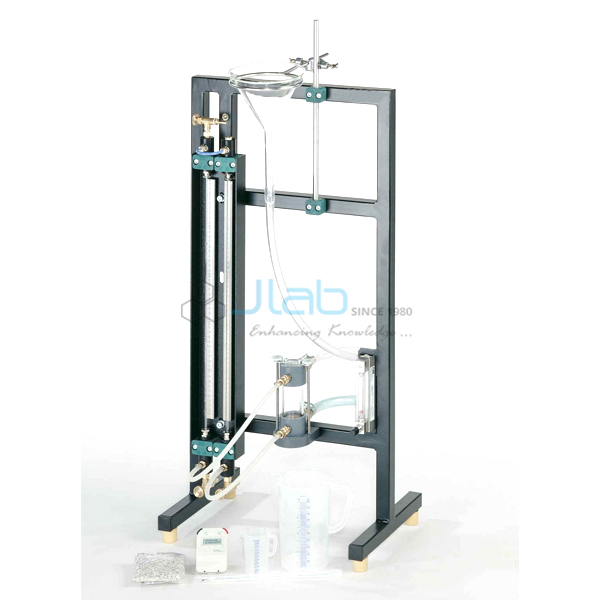

The Cake and Depth Filtration unit (SKU JA-AM-6486) is a bench apparatus for the fundamentals of cake and depth filtration. Suspension flows from a height-adjustable glass filler hopper through a glass filter element with a sintered metal filter medium of 100 micron pore size at its base, and twin tube manometers measure the pressure loss while a flow meter with needle valve sets the flow. It is supplied by JaincoLab for chemical and mechanical process engineering laboratories.
Specifications
The filter chamber is 85 mm high with an inside diameter of about 37 mm and an area of about 11 cm²; the sintered metal medium is 2 mm thick with 100 micron pores; flow is measured over 40-360 ml/min and pressure over 2 x 0-500 mmWC.
| Product | Cake and Depth Filtration |
| SKU | JA-AM-6486 |
| Filter chamber | Glass; height 85 mm; inside diameter approx. 37 mm; area approx. 11 cm² |
| Filter medium | Sintered metal; pore size 100 micron; thickness 2 mm |
| Pressure loss | Twin tube manometers, 2 x 0-500 mmWC |
| Flow | Flow meter with needle valve, 40-360 ml/min |
| Temperature range | -10 to 100°C |
| Filler hopper | Glass, height adjustable |
| Measuring cups | 1000 mL (10 mL divisions); 100 mL (2 mL divisions) |
Experiments with the cake and depth filtration unit
Students filter suspensions at set flow rates, record pressure loss against time as the cake builds or the medium loads, and distinguish cake filtration from depth filtration.
- Cake filtration and cake resistance
- Depth filtration in a sintered medium
- Pressure loss across filter media
- Effect of flow rate on filtration
- Mechanical operations practicals
Scope of supply
This listing covers the cake and depth filtration unit with filter element, sintered medium, manometers, flow meter, hopper and measuring cups. Accessories, spares and quantities are confirmed on the quotation. Test suspensions and spare filter media are confirmed on the quotation.
Packing, MOQ and lead time
Packing, lead time and any minimum order for the Cake and Depth Filtration are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
JaincoLab specialises in turnkey laboratory projects funded by education ministries, the World Bank and United Nations programmes, manufacturing and exporting the equipment and executing these projects successfully in many countries. Tender bidders can send their requirement list through our tenders page for a line-by-line quotation.
Frequently asked questions
What filter medium is used?
A 2 mm sintered metal medium with 100 micron pores.
How is pressure loss measured?
With twin tube manometers of 0-500 mmWC each.
What flow range is covered?
40 to 360 ml/min, set by a needle valve.
What should a quotation request include?
Send SKU JA-AM-6486, the quantity and the delivery destination.
