Static and Dynamic Balancing Apparatus
Product Code : JA-FMAHLE-7333
The Static and Dynamic Balancing Apparatus (SKU JA-FMAHLE-7333) is used to balance a rotating mass system of four blocks on a steel shaft, first statically and then dynamically. JaincoLab makes this balancing apparatus for theory of machines practicals in mechanical engineering colleges and polytechnics, where students find the relative weights of the blocks, draw the moment polygon and confirm the balance by running the shaft with a motor.
Specifications

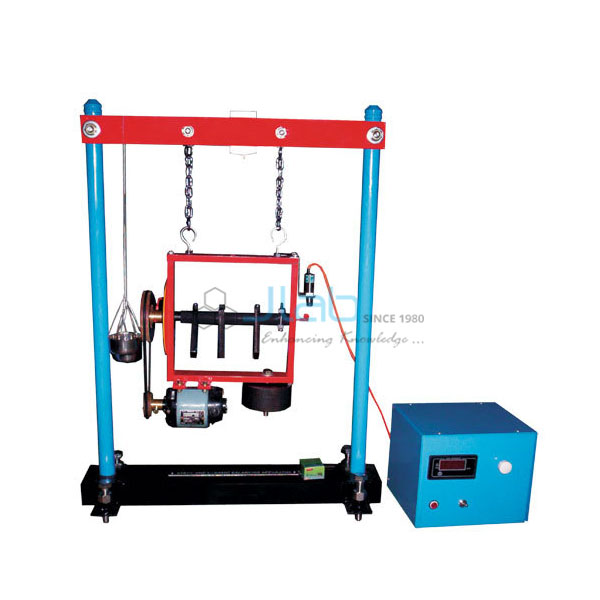

The unit has a steel shaft fixed in a rectangular frame, four blocks with clamping arrangement, angular and longitudinal scales for positioning them, a cord and container system that weighs each block in steel balls, chains for suspending the frame and a motor that spins the shaft.
| Product | Static and Dynamic Balancing Apparatus |
| SKU | JA-FMAHLE-7333 |
| Shaft and frame | Steel shaft fixed in a rectangular frame |
| Rotating masses | Set of four blocks with clamping arrangement |
| Static balancing | Each block clamped individually; relative weight found with a cord and container system in terms of number of steel balls |
| Scales | Angular and longitudinal scales |
| Dynamic balancing | Frame suspended with chains; shaft rotated by a motor |
| Electric supply | 0.5 kW, 220 V, single phase |
Applications of the static and dynamic balancing apparatus
The static and dynamic balancing apparatus shows why a shaft that is balanced at rest can still vibrate when it turns, and lets students correct both conditions by calculation and test, which is a core practical in the balancing unit of theory of machines.
- Balancing a single rotating mass system statically and dynamically
- Finding the relative weights of the blocks with the cord and container method
- Drawing the moment polygon to fix the angular and axial positions of the blocks
- Observing the effect of unbalance in a rotating mass system
- Theory of machines practicals in B.E./B.Tech and diploma mechanical engineering courses
Scope of supply and ordering
The listing covers the balancing apparatus with its steel shaft and frame, four blocks with clamps, scales, cord and container arrangement, suspension chains and motor drive. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of units and the delivery destination. Single units, complete machines laboratories and tender quantities are supplied to engineering colleges and polytechnics.
Frequently asked questions
How many balancing blocks are supplied?
A set of four blocks with a clamping arrangement.
How are the block weights compared?
Each block is clamped on the shaft in turn and its relative weight is found with a cord and container system, counted in steel balls.
What power supply does it need?
0.5 kW, 220 V, single phase.
