Flexure Testing Machine
Product Code : JA-CT-9905

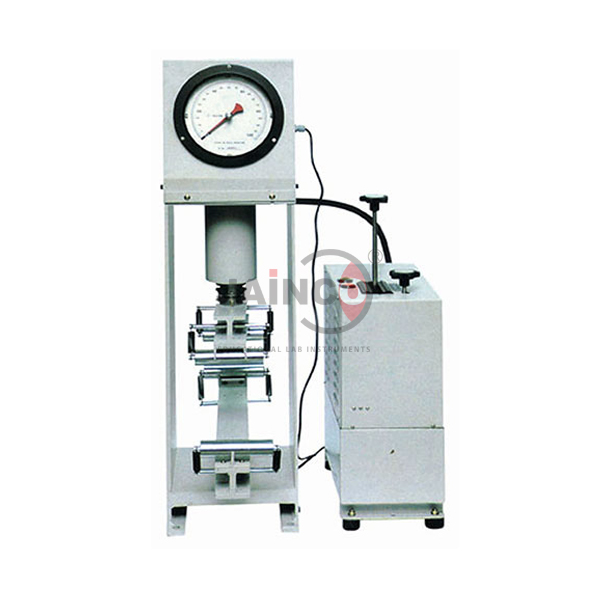

The Flexure Testing Machine (SKU JA-CT-9905) tests the flexural strength of concrete beams. Its frame is designed for rigidity throughout the working range, the load is applied by the downward movement of the piston, and a spacer allows different sizes of beam to be tested. On the hand-operated version the load is read on a calibrated Bourdon tube gauge of 0-100 kN x 0.5 kN. Models of 100 kN capacity are listed with hand, electric, digital, automatic pace-rate and Windows-based automatic operation, plus a 200 kN digital machine for timber. It is supplied by JaincoLab for concrete testing laboratories.
Specifications
The machine has a rigid frame, downward piston loading, a spacer for beam sizes and a 0-100 kN x 0.5 kN Bourdon gauge; 100 kN models and a 200 kN timber model for 200 x 200 mm samples up to 4.8 m long are listed, and beam sizes and roller spans are not listed in the product data and are confirmed on the quotation.
| Product | Flexure Testing Machine |
| SKU | JA-CT-9905 |
| Capacity | 100 kN (concrete models); 200 kN (timber model) |
| Load gauge | Bourdon tube, 0-100 kN x 0.5 kN |
| Loading | Downward movement of the piston |
| Beam sizes | Spacer for different beam sizes |
| 100 kN models | Hand operated; electrically operated; digital; automatic pace rate controller; automatic Windows based |
| Timber model | Digital, 200 kN, sample 200 mm x 200 mm up to 4.8 m long |
Applications of the flexure testing machine
Technicians set a cured beam on the supports, apply load through the piston at a steady rate until fracture and calculate the modulus of rupture from the failure load and span.
- Flexural strength of concrete beams
- Modulus of rupture for pavement concrete
- Quality control of precast elements
- Flexural tests on timber sections
- Concrete technology practicals
Scope of supply and ordering
This listing covers one flexure testing machine in the model chosen. Accessories, spares and quantities are confirmed on the quotation. Power supply and calibration documents are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Flexure Testing Machine are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What capacity is listed for concrete beams?
100 kN, in hand, electric, digital and automatic versions.
How is the load read on the hand model?
On a Bourdon tube gauge of 0-100 kN x 0.5 kN.
Is there a model for timber?
Yes, a 200 kN digital machine for 200 x 200 mm samples up to 4.8 m long.
