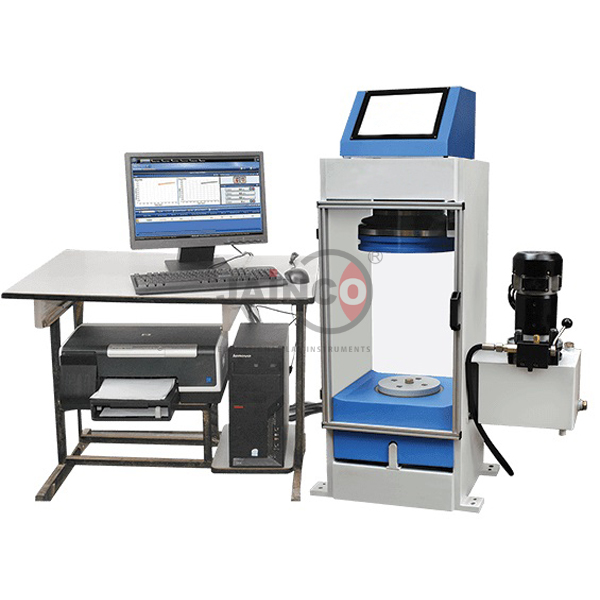

Automatic Compression Testing Machine
Product Code : JA-CT-9883
The Automatic Compression Testing Machine (SKU JA-CT-9883) is a fully automated compression tester for concrete and other specimens, offered in capacities from 50 kN to 5000 kN. Loading rate is held by three-term PID feedback control with high-torque stepper motors, the pump switches on and off automatically, and data acquisition, storage and analysis are automated. A touch-screen digital indicator shows a load pacing bar, maximum load and stress, and results go out by USB or Wi-Fi. It is supplied by JaincoLab for concrete and materials laboratories.
Specifications
The machine has a welded loading unit with top crosshead, base and solid side plates, a precision-ground piston, hardened and polished platens with an oil-filled ball-seated upper platen, spacers, a dual-stage pump and a touch-screen indicator storing about 2000 test results.
| Product | Automatic Compression Testing Machine |
| SKU | JA-CT-9883 |
| Capacity range | 50 kN to 5000 kN |
| Control | Three-term PID feedback, high-torque stepper motors and drivers |
| Loading unit | Fully welded; top crosshead, base, solid side plates; precision-ground piston |
| Platens | Hardened, ground and polished; upper platen with oil-filled ball seating; spacers |
| Pump | Dual stage - fast approach and precise load control |
| Indicator | Touch screen; load pacing bar; maximum load and stress; USB and Wi-Fi |
| Memory | About 2000 test results; imperial, metric or SI units |
| Options | Electronic balance link; camera for specimen images; monitoring software |
Applications of the automatic compression testing machine
Technicians place the cube or cylinder, choose the pace rate and start the test; the machine loads to failure, records the peak load and stress, releases pressure and resets for the next specimen.
- Compressive strength of concrete cubes and cylinders
- High-throughput quality control testing
- Automatic recording and export of results
- Testing blocks, mortar and other materials with spacers
- Concrete technology practicals
Scope of supply and ordering
This listing covers the automatic compression testing machine in the capacity chosen, with loading unit, pumping unit and indicator. Accessories, spares and quantities are confirmed on the quotation. Optional balance, camera and software are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Automatic Compression Testing Machine can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What capacities are available?
From 50 kN to 5000 kN.
How is the loading rate controlled?
By three-term PID feedback control with high-torque stepper motors.
How are results exported?
By USB or Wi-Fi from the touch-screen indicator, which stores about 2000 tests.
Related products
For a complete concrete technology laboratory, see the concrete testing equipment range.
Request a quote
To get a quotation for the Automatic Compression Testing Machine, send SKU JA-CT-9883, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
