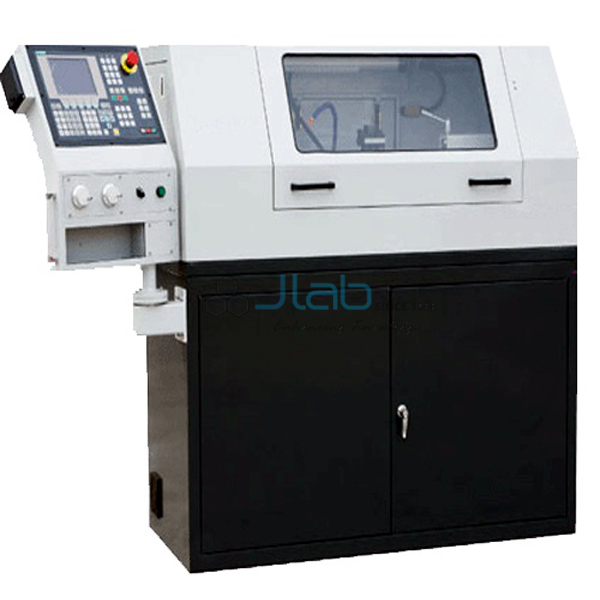

CNC Lathe System
Product Code : JA-CTM-9074
The CNC Lathe System (SKU JA-CTM-9074) is a CNC lathe with 600 mm between centres and a 260 mm turning diameter over the bed, suited to shaft work and thread-cutting practicals. The spindle has a 26 mm bore and runs from 30 to 4000 rpm on a 2.2 kW, 230 V motor, and it cuts metric pitches from 0.2 to 3.5 mm and inch threads from 8 to 56 TPI. Engineering colleges and training workshops use it for CNC turning practice. It is supplied by JaincoLab with the specification listed below.
Specifications
The lathe gives 600 mm between centres, 130 mm X and 465 mm Z travel, rapid speeds of 3000 mm/min on X and 2500 mm/min on Z, and positioning accuracy of 0.03 mm (X) and 0.032 mm (Z).
| Product | CNC Lathe System |
| SKU | JA-CTM-9074 |
| Distance between centres | 600 mm |
| Turning diameter over bed | 260 mm |
| Spindle bore | 26 mm |
| Spindle speed | 30 to 4000 rpm |
| Thread pitch, metric | 0.2 to 3.5 mm |
| Thread pitch, inch | 8 to 56 TPI |
| Travel | X 130 mm, Z 465 mm |
| Rapid speed | X 3000 mm/min, Z 2500 mm/min |
| Positioning accuracy | X 0.03 mm, Z 0.032 mm |
| Repeatability positioning accuracy | X 0.012 mm, Z 0.013 mm |
| Motor | 2.2 kW, 230 V, 50 Hz |
| Packing size | 2220 x 820 x 1720 mm |
Applications of the CNC lathe system
Long centres and a wide thread range make this lathe suitable for shaft turning and metric or inch thread-cutting practicals.
- CNC turning practicals in mechanical and production engineering courses
- Metric and inch thread cutting exercises
- Shaft turning between centres up to 600 mm
- CNC modules in polytechnics and industrial training institutes
Scope of supply and ordering
The listing covers the CNC lathe with 2.2 kW spindle motor and X/Z axis drives. The CNC control, chuck, tool post and tooling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of machines and the control and tooling package and the delivery destination. The packed size is 2220 x 820 x 1720 mm. Single machines and lab sets for colleges and tenders are supplied.
Frequently asked questions
What threads can it cut?
Metric pitches from 0.2 to 3.5 mm and inch threads from 8 to 56 TPI.
What power supply does it need?
230 V, 50 Hz for the 2.2 kW motor.
What is the spindle bore?
26 mm.
