DV and DT Limitation Of SCRS
Product Code : JA-PET-1416

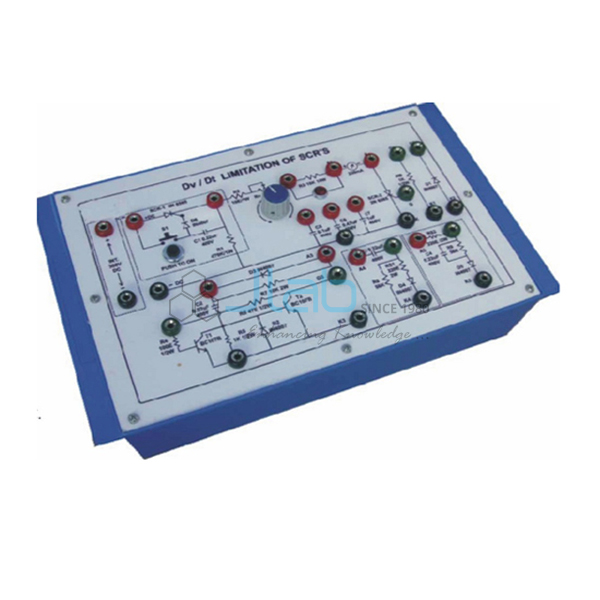

The dv/dt limitation of SCRs trainer is a power electronics board for studying how fast the voltage across an SCR can rise before it turns on unintentionally, and how that limit can be raised. A built-in 300 V DC supply and a thyristor switch apply a sudden voltage to the SCR under test, while gate-cathode terminations, biasing, a transistorised snubber and two R-C snubber schemes show their effect. A visual indicator shows when the SCR fires (SKU JA-PET-1416).
Specifications
Built-in parts and ratings listed:
| Product | DV and DT Limitation Of SCRS |
| SKU | JA-PET-1416 |
| DC supply | 300 V DC at 250 mA, internally connected |
| Switching | Thyristor switch to apply a sudden voltage to the SCR under test |
| Device under test | SCR |
| Gate-cathode parts | Resistance for gate-cathode termination; silicon diode |
| Snubbers | Transistorised snubber circuit; two R-C snubber schemes |
| Indication | Visual indication of SCR firing |
| Mains | 230 V ±10%, 50 Hz AC; ON/OFF switch, fuse and jewel light |
| Patch cords | 4 mm stackable, 0.5 m |
| Weight | 3 kg approx. |
| Dimensions | W 340 x H 110 x D 210 mm |
| Also required | 3 3/4 digit multimeter; 0-30 V, 1 A regulated supply |
Experiments on the dv/dt trainer
The listed experiments are:
- Estimation of the dv/dt capability of the SCR
- dv/dt capability with different gate-cathode terminations
- dv/dt capability with gate-cathode voltage biasing and with current biasing
- Raising dv/dt capability with a transistor snubber circuit
- Effect of R-C snubber circuits, comparing two snubber schemes
Scope of supply and ordering
The listing covers the dv/dt trainer with patch cords and operating instructions, supplied by JaincoLab; the multimeter and external supply are ordered separately. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
What does the dv/dt trainer demonstrate?
How quickly the voltage across an SCR can rise before it turns on unintentionally, and how terminations, biasing and snubbers raise that limit.
How is the sudden voltage applied to the SCR?
A thyristor switch connects the built-in 300 V DC supply suddenly across the SCR under test.
Which snubber circuits are included?
A transistorised snubber and two R-C snubber schemes.
