Expansion Index Test Apparatus
Product Code : JA-SM-8884

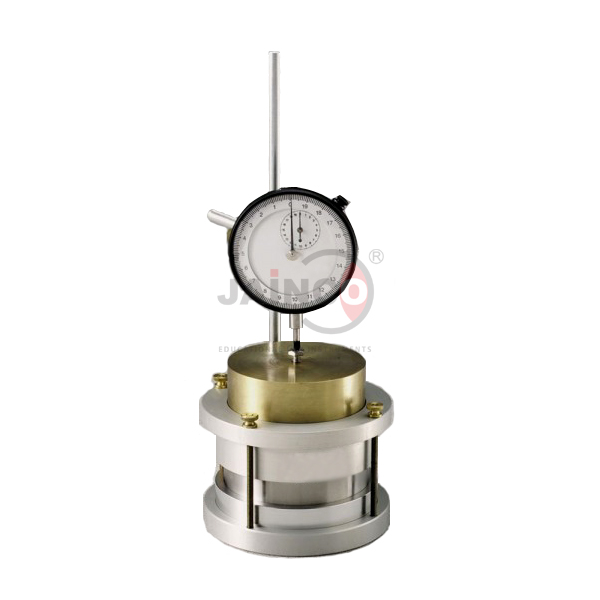

The expansion index test apparatus measures how much a compacted soil specimen swells when wetted, giving its expansion index. The specimen sits in a 101.6 x 25.4 mm stainless steel ring between porous stones in a cast aluminium base and collar, under a 5.7 kg brass loading weight, with the swell read on a dial indicator; a test takes 24 hours or less on the cured sample (SKU JA-SM-8884).
Specifications
Parts and sizes as listed:
| Product | Expansion Index Test Apparatus |
| SKU | JA-SM-8884 |
| Specimen ring | Stainless steel, 101.6 mm (4 inch) ID x 25.4 mm (1 inch) high |
| Base and collar | Cast aluminium, brass hold-down rods |
| Loading weight | Brass, 5.7 kg (12.6 lb) |
| Dial indicator | 8 mm x 0.002 mm, or 0.3 inch x 0.0001 inch |
| Porous stones | 101.4 mm dia x 12.7 mm thick |
| Test duration | 24 hours or less on the cured sample |
Scope of supply and ordering
The apparatus is supplied by JaincoLab with the ring, base and collar, loading weight, porous stones and a metric or inch dial indicator. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
What size is the specimen ring?
101.6 mm (4 inch) internal diameter and 25.4 mm (1 inch) high, in stainless steel.
How long does a test take?
24 hours or less on the cured sample.
Which dial indicators are listed?
An 8 mm x 0.002 mm metric indicator or a 0.3 inch x 0.0001 inch indicator.
