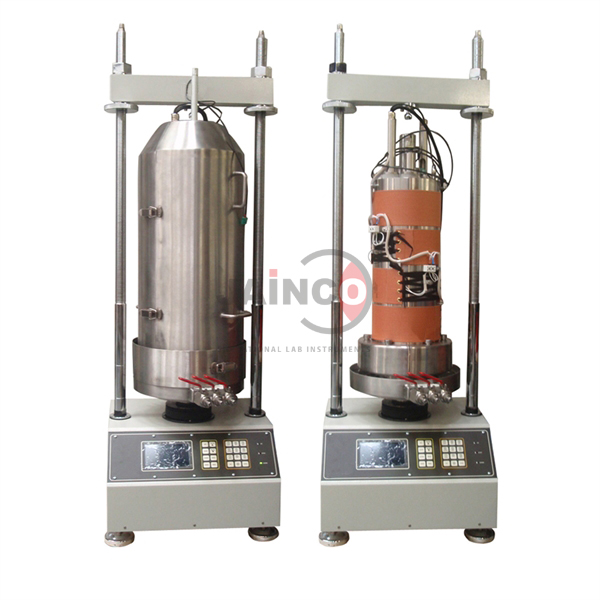

Environmental Triaxial Range
Product Code : JA-ST-9798
The Environmental Triaxial Range (SKU JA-ST-9798) covers temperature-controlled triaxial testing systems in two forms: a load-frame system rated to 100 MPa and a stress path system rated to 10 MPa. Heating and cooling versions run between -30 °C and +80 °C depending on the option, and heating-only versions from ambient to 100 °C, for research on frozen soils, gas hydrates and other temperature-dependent soil behaviour. It is supplied by JaincoLab.
Specifications
Pressure and temperature options for the range are:
| Product | Environmental Triaxial Range |
| SKU | JA-ST-9798 |
| Load frame based system | Pressure up to 100 MPa |
| Stress path system | Pressure up to 10 MPa |
| Heating and cooling option 1 | -30 °C to +65 °C |
| Heating and cooling option 2 | -20 °C to +80 °C |
| Heating and cooling option 3 | -10 °C to +65 °C |
| Heating only | Ambient to 100 °C |
Applications of environmental triaxial systems
Temperature control lets triaxial tests reproduce ground conditions that a standard cell cannot:
- Triaxial tests on frozen soils
- Gas hydrate testing on sediment samples
- Temperature-controlled stress path testing in research laboratories
- High-pressure load-frame testing at controlled temperature
Scope of supply and ordering
Specify the load-frame or stress path system and the temperature option; the listing covers the environmental triaxial system as configured. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
What temperature ranges are available?
Heating and cooling options cover -30 °C to +65 °C, -20 °C to +80 °C and -10 °C to +65 °C, and heating-only systems run from ambient to 100 °C.
What pressures do the two system types reach?
The load frame based system reaches up to 100 MPa and the stress path system up to 10 MPa.
Which materials is the range used for?
It is used for temperature-controlled triaxial testing, including frozen soils and gas hydrate testing.
