Geotechnical Software for Testing, Analysis and Reporting
Product Code : JA-ST-9781
The geotechnical software for testing, analysis and reporting (SKU JA-ST-9781) is a set of PC software modules that process and report data from soil laboratory tests: triaxial, direct shear, California bearing ratio (CBR) and one-dimensional consolidation. Each module carries its own single-user licence, so a laboratory can order only the tests it actually runs. The software is supplied by JaincoLab for geotechnical laboratories in engineering colleges, universities and materials testing centres.
Specifications
Six analysis and reporting modules make up the listing; each one is licensed separately.
| Product | Geotechnical Software for Testing, Analysis and Reporting |
| SKU | JA-ST-9781 |
| Type | PC software for analysis and reporting of soil test data |
| CBR test module | Analysis and reporting, single-user licence |
| Direct shear test module | Analysis and reporting, single licence |
| Consolidated undrained (CU) triaxial module | Single licence |
| Unconsolidated undrained (UU) triaxial module | Single licence |
| Consolidated drained (CD) triaxial module | Single licence |
| One-dimensional consolidation (oedometer) module | Single licence |
Uses of the geotechnical testing software
Each module matches one standard soil laboratory test, so the software is used wherever that test is run and reported:

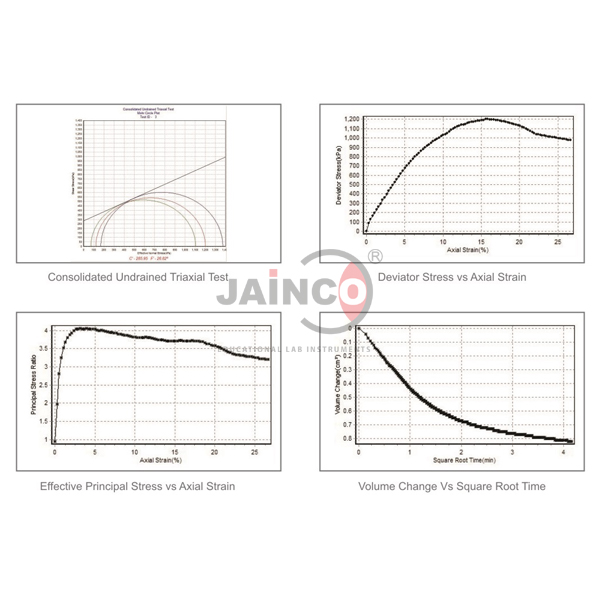

- Analysis and reports for consolidated undrained, unconsolidated undrained and consolidated drained triaxial tests
- Direct shear test records in soil mechanics and geotechnical laboratories
- CBR test reports for subgrade and pavement material evaluation
- Oedometer (one-dimensional consolidation) test analysis in teaching and consultancy laboratories
Scope of supply and ordering
Order one module or several; each of the six modules named above is supplied on its own licence. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
Which triaxial tests does the software cover?
Three separate modules cover consolidated undrained, unconsolidated undrained and consolidated drained triaxial tests, each on a single licence.
Is a consolidation test module part of the listing?
Yes. A one-dimensional consolidation (oedometer) test module for analysis and reporting is included in the range, on a single licence.
Is the CBR module licensed for more than one user?
The CBR analysis and reporting module is listed with a single-user licence, as are the other five modules.
Related products
- Triaxial Testing System
- Automatic Triaxial Testing System
- Consolidation Testing System
- Data Acquisition Cum Datalogging System
Browse the full soil testing equipment range for related items.
Request a quote
Send your requirement for the Geotechnical Software for Testing, Analysis and Reporting to [email protected] or use the contact page. Tender and project enquiries can be sent through the tenders page.
