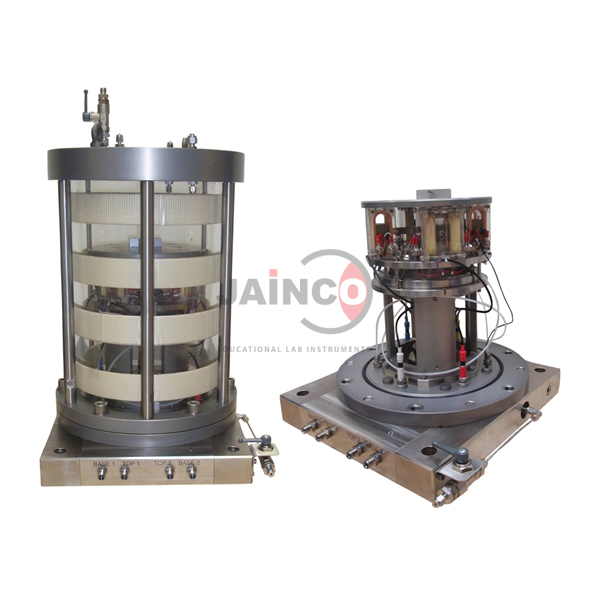

Resonant Column Apparatus
Product Code : JA-ST-9828
The Resonant Column Apparatus (SKU JA-ST-9828) measures the shear modulus (G) and damping ratio (D) of soil specimens in the small to medium strain range, below 1%. The way G and D change as strain increases is the input for dynamic response analyses, including finite element and non-linear methods, used to assess natural and engineered structures under dynamic and cyclic loading. It is supplied by JaincoLab.
Specifications
Test data:
| Product | Resonant Column Apparatus |
| SKU | JA-ST-9828 |
| Properties measured | Shear modulus (G) and damping ratio (D) |
| Strain range | Small to medium strain, below 1% |
| Loading type | Dynamic and cyclic |
| Specimen size and drive system | Confirmed on the quotation |
Scope of supply and ordering
The specimen size and drive configuration are agreed when the apparatus is quoted. Lead time and packing depend on the order size and are confirmed when we quote.
Frequently asked questions
What does the resonant column apparatus measure?
It measures the shear modulus (G) and damping ratio (D) of soil specimens.
What strain range does it cover?
The small to medium strain range, generally below 1%.
How are the results used?
The change of G and D with strain feeds dynamic response analyses, such as finite element and non-linear analytical methods.
Related products
- Hollow Cylinder Apparatus
- Cyclic and Static Triaxial Apparatus
- Advanced Dynamic Triaxial Testing System
- Direct and Simple Shear Systems
Browse the full soil testing equipment range for related items.
Request a quote
For a price on the Resonant Column Apparatus, share the quantity and destination via the contact page or email [email protected]. For tender or project supply, see our tenders page.
