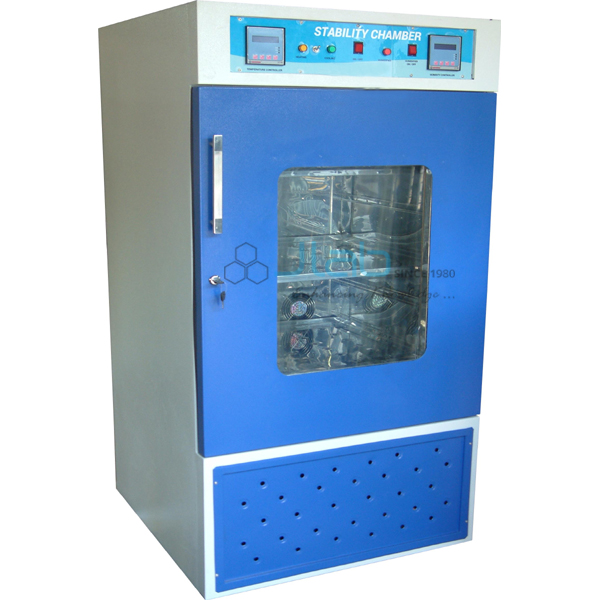

Environmental Chamber (Cooled Humidity Chamber)
Product Code : JA-SI-6498
The Environmental Chamber (Cooled Humidity Chamber), SKU JA-SI-6498, holds samples at a set temperature and humidity for quality control testing. A microprocessor-based PID indicator-controller keeps the temperature anywhere from 5 C to 60 C to +/-1 C, and a hermetically sealed compressor allows settings below room temperature. Humidity is raised by steam injection and held by a digital controller from ambient up to 95% RH, +/-3%. The chamber runs on 220/230 V AC, stands on castor wheels, and its double-walled door has a transparent viewing window.
Specifications
Control ranges, construction and the three listed sizes:
| Product | Environmental Chamber (Cooled Humidity Chamber) |
| SKU | JA-SI-6498 |
| Temperature | 5 C to 60 C, +/-1 C |
| Temperature control | Microprocessor-based PID digital indicator-controller |
| Humidity | Ambient to 95% RH, +/-3% |
| Humidity control | Steam injection with digital humidity controller |
| Cooling | Hermetically sealed compressor |
| Inner chamber and trays | Stainless steel |
| Outer body | Epoxy powder-coated mild steel, on castor wheels |
| Insulation | PUF |
| Door | Double-walled, viewing window, magnetic gasket, lock and key |
| Supply | 220/230 V AC |
| Size 1 | 505 x 415 x 830 mm inner, 171 litres (6.1 cu ft) |
| Size 2 | 570 x 555 x 875 mm inner, 276 litres (10 cu ft) |
| Size 3 | 650 x 580 x 900 mm inner, 336 litres (12 cu ft) |
Scope of supply and ordering
Three chamber sizes are listed; state the size and the number of chambers, and quantities and packing are confirmed on the quotation.
Frequently asked questions
What temperature range does the environmental chamber cover?
5 C to 60 C, controlled to +/-1 C by a PID controller.
How high can the humidity be set?
From ambient up to 95% RH, +/-3%, using steam injection.
Which sizes are available?
171, 276 and 336 litres (6.1, 10 and 12 cu ft).
