Electrical Vibrator
Product Code : JA-SI-8026

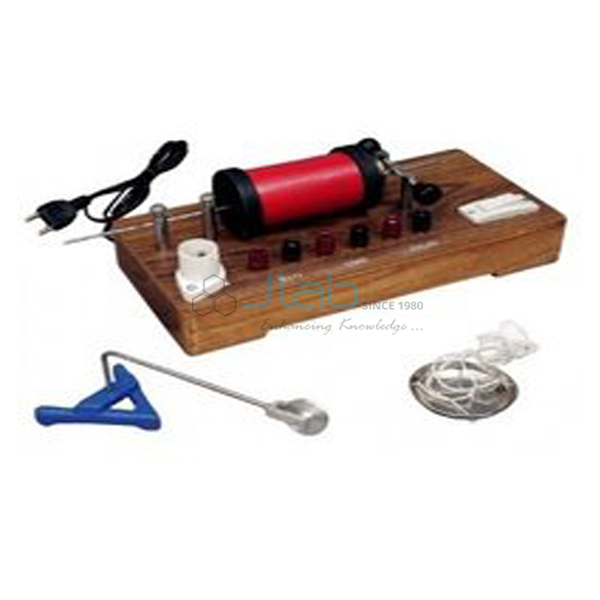

The Electrical Vibrator (SKU JA-SI-8026) is used to find the frequency of the AC mains. A thin steel rod, magnetised along its length, is clamped at one end and passes through a small solenoid connected to the mains through a suitable lamp resistance. A horseshoe magnet makes the rod vibrate at the supply frequency, and its length can be adjusted so that its natural frequency matches the supply. It is mounted on a polished wooden base with a pulley, pan and cord.
Specifications
Construction as listed:
| Product | Electrical Vibrator |
| SKU | JA-SI-8026 |
| Vibrating element | Thin steel rod, magnetised longitudinally, clamped at one end |
| Drive | Small solenoid on AC mains through a lamp resistance |
| Magnet | Horseshoe type |
| Adjustment | Vibrator length adjustable to match the supply frequency |
| Base | Polished wood, with pulley, pan and cord |
Scope of supply and ordering
Supplied on its base with pulley, pan and cord. The lamp resistance, quantities and packing are confirmed on the quotation.
Frequently asked questions
What is the electrical vibrator used for?
Finding the frequency of the AC mains by making a steel rod vibrate at the supply frequency.
Why can the rod length be adjusted?
So that its natural frequency can be matched to the supply frequency for strong vibration.
