Dunagan Test Set
Product Code : JA-CL-8853

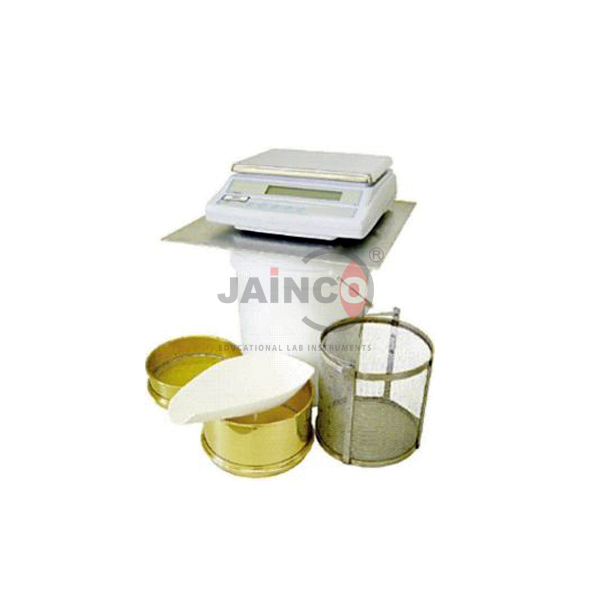

The Dunagan test set is a portable kit for finding the constituents of fresh concrete and for specific gravity, absorption and silt tests on fine and coarse aggregates. It packs a 5 kg balance, immersion and soaking buckets, an overflow container, a density basket, two 8-inch sieves, scoops and weights into a galvanized steel case (SKU JA-CL-8853).
Specifications
Contents of the set as listed:
| Product | Dunagan Test Set |
| SKU | JA-CL-8853 |
| Balance | 5 kg capacity |
| Containers | Immersion and soaking buckets with handles; water overflow container |
| Scoops | Set of 3, for weighing |
| Sieves | 203 mm (8 inch) diameter: one no. 4 mesh x 102 mm (4 inch) high; one no. 100 mesh, standard height |
| Density basket | 203 mm diameter x 203 mm deep, reinforced no. 8 wire mesh |
| Weights | 2000 g brass weight set; 1 kg slotted weights |
| Case | Galvanized steel, with cover and carrying handles |
Tests with the Dunagan test set
- Analysis of the constituents of fresh concrete
- Specific gravity of fine and coarse aggregates
- Absorption of fine and coarse aggregates
- Silt determination
Scope of supply and ordering
The set covers the balance, buckets, overflow container, scoops, both sieves, density basket and weights in the galvanized carrying case, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What tests is the Dunagan set used for?
Analysing the constituents of fresh concrete, and specific gravity, absorption and silt tests on fine and coarse aggregates.
What balance capacity is included?
A 5 kg balance, with a 2000 g brass weight set and 1 kg slotted weights.
Which sieves come in the set?
Two 203 mm (8 inch) sieves: a no. 4 mesh sieve 102 mm high and a no. 100 mesh sieve of standard height.
Related products
- Coarse Aggregate Density Test Set
- Sample Splitters (Riffle Boxes)
- Organic Impurities Test Set
- Los Angeles Abrasion Machine
The concrete laboratory equipment range lists further items of this kind.
Request a quote
Send your requirement for the Dunagan Test Set to [email protected] or use the contact page.
