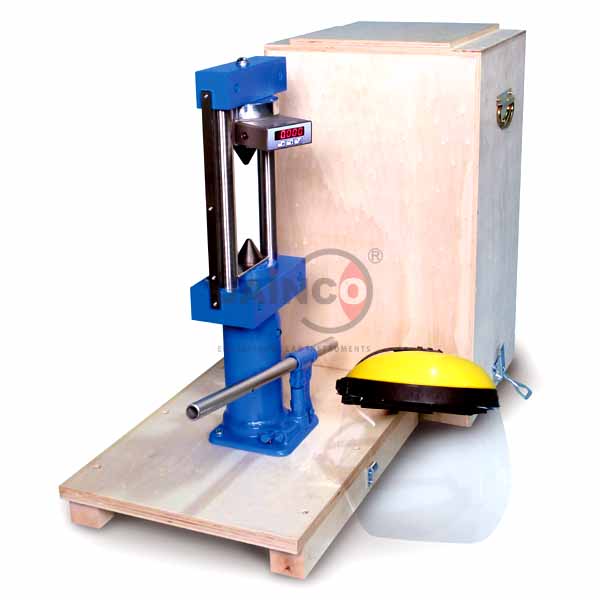

Digital Point Load Tester
Product Code : JA-CL-8857
The digital point load tester measures the strength index of rock specimens in the field or in the laboratory, loading core specimens up to 101.6 mm (4 inch) diameter between two cone-shaped points. A manual hydraulic jack on the load frame applies up to 56 kN, read on an electric load cell with a digital display at 0.001 kN resolution (SKU JA-CL-8857).
Specifications
Load and measuring data as listed:
| Product | Digital Point Load Tester |
| SKU | JA-CL-8857 |
| Specimen | Rock cores up to 101.6 mm (4 inch) diameter |
| Maximum load | 56 kN, manual hydraulic jack |
| Load measurement | Electric load cell with digital display, 0-56 kN |
| Divisions | 65,000 |
| Resolution | 0.001 kN |
| Linearity | 0.05% |
| Hysteresis | 0.03% |
| Repeatability | 0.02% |
| Point spacing | Read on a graduated scale |
| Dimensions | 400 x 530 x 720 mm |
| Supplied with | Wooden carrying case, goggles and accessories |
Scope of supply and ordering
The listing covers the load frame with hydraulic jack, load cell and digital display, packed in the wooden carrying case with goggles and accessories, supplied by JaincoLab. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
What specimen size does it accept?
Rock core specimens up to 101.6 mm (4 inch) in diameter.
How is the point load strength index worked out?
From the load P and the distance D between the two conical points, as P divided by D squared.
What is the load resolution?
0.001 kN over the 0-56 kN range, with 65,000 divisions.
