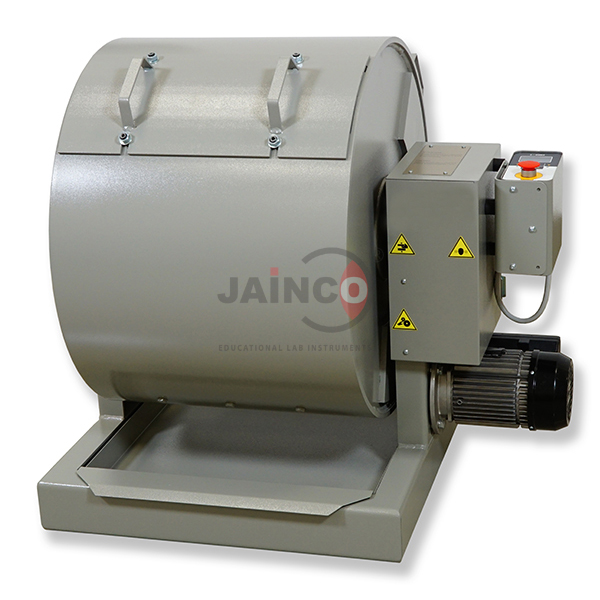

Los Angeles Abrasion Machine
Product Code : JA-CL-8856
The Los Angeles abrasion machine tests coarse aggregates for their resistance to abrasion. A rolled steel drum of 711 mm inside diameter and 508 mm internal length is turned by an electric motor and speed reducer at 31 to 33 rpm, and an automatic counter can be preset to the required number of revolutions or the total working time (SKU JA-CL-8856).
Specifications
Machine data from the listing:
| Product | Los Angeles Abrasion Machine |
| SKU | JA-CL-8856 |
| Test | Resistance of coarse aggregates to abrasion |
| Drum | Rolled steel, 711 mm inside diameter, 508 mm internal length |
| Drive | Electric motor with speed reducer |
| Drum speed | 31 to 33 rpm |
| Counter | Automatic, presettable to revolutions or total working time |
| Abrasive charge | Not included; ordered separately to suit the standard in use |
| Safety cabinet | Not included; optional cabinet with door opening switch, with or without noise reduction |
Scope of supply and ordering
The listing covers the abrasion machine without the abrasive charge or safety cabinet, both of which can be added to the order, supplied by JaincoLab. Quantities, packing and lead time are confirmed on the quotation.
Frequently asked questions
Is the abrasive charge included?
No. The machine is supplied without the abrasive charge, which is ordered separately depending on the standard in use.
At what speed does the drum turn?
Between 31 and 33 rpm, driven by an electric motor through a speed reducer.
What are the drum dimensions?
711 mm inside diameter and 508 mm internal length.
Can a safety cabinet be added?
Yes, it can be upgraded with a safety cabinet with door opening switch, also available with noise reduction.
