Cavitation
Product Code : JA-FMAHLE-10002

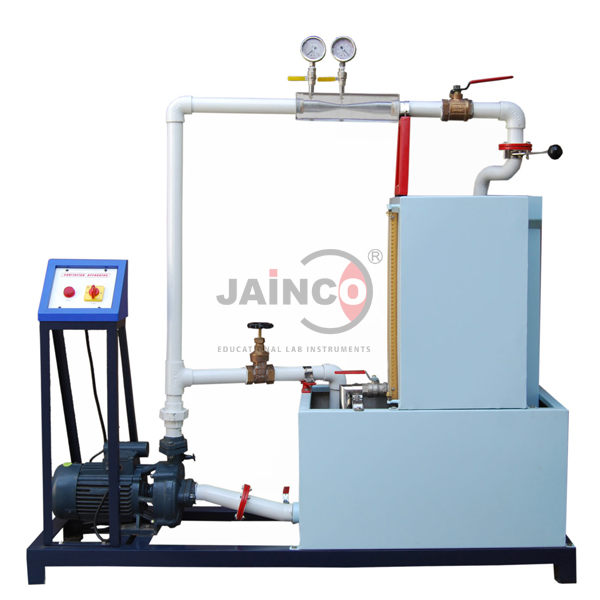

The Cavitation unit (SKU JA-FMAHLE-10002), supplied by JaincoLab, shows how cavitation forms when the pressure of flowing water falls to its vapour pressure. Water passes through a transparent Venturi nozzle that narrows from 18 mm to a 3.5 mm throat, so the vapour bubbles can be seen, and a manometer shows the pressure curve at three measuring points. This cavitation demonstration unit sets the flow with ball valves and a pressure reducing valve and measures it with a rotameter.
Specifications
The cavitation unit is specified by a transparent Venturi nozzle of 18 mm inlet and outlet with a 3.5 mm throat, 10.5° contraction and 4° enlargement, a pressure reducing valve of 0.5 to 2 bar and measuring ranges for temperature, pressure and flow as tabled.
| Product | Cavitation |
| SKU | JA-FMAHLE-10002 |
| Venturi nozzle | Transparent; ID 18 mm inlet and outlet; narrowest ID 3.5 mm |
| Nozzle angles | Contraction 10.5°; enlargement 4° |
| Pressure points | 3 on the Venturi nozzle |
| Pressure reducing valve | Adjustable, 0.5 - 2 bar, up to 70 °C |
| Flow control | Ball valves |
| Temperature range | 0 - 60 °C (thermometer) |
| Pressure range | -1 to 1.5 bar (manometer) |
| Flow range | 0 - 1000 L/h (rotameter) |
Experiments with the cavitation unit
The unit is used to make cavitation visible in the throat of a Venturi nozzle and to relate its onset to the measured pressure, flow rate and water temperature.
- Investigating cavitation in a Venturi nozzle
- Pressure curve along the Venturi
- Onset of cavitation against flow rate and pressure
- Effect of water temperature on cavitation
Scope of supply and ordering
The listing covers the Cavitation unit with Venturi nozzle, valves, rotameter, manometer and thermometer. The water supply connection is provided by the user. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and the delivery destination. Single trainers and complete fluid mechanics laboratories for engineering colleges, polytechnics and TVET institutes, including tender orders, are supplied.
Frequently asked questions
Can the cavitation be seen?
Yes. The Venturi nozzle is transparent, with a 3.5 mm throat where the bubbles form.
What flow range is measured?
0 to 1000 L/h on the rotameter.
How is the pressure set?
With an adjustable pressure reducing valve of 0.5 to 2 bar and ball valves.
Related products
- Losses in Straight Pipes
- Electromagnetic Flow Meter
- Paddle Wheel Flow Meter
- Friction Losses in Pipe Elements
See the complete fluid mechanics lab equipment range from JaincoLab for hydraulics, air flow and flow measurement.
Request a quote
For a quotation on the Cavitation unit, send the quantity, any accessories needed and the delivery destination through the JaincoLab contact page or email [email protected] with SKU JA-FMAHLE-10002. Buying under a laboratory tender? Use our tenders page.
