Verification of Reciprocity Theorem
Product Code : JA-VONT-1132

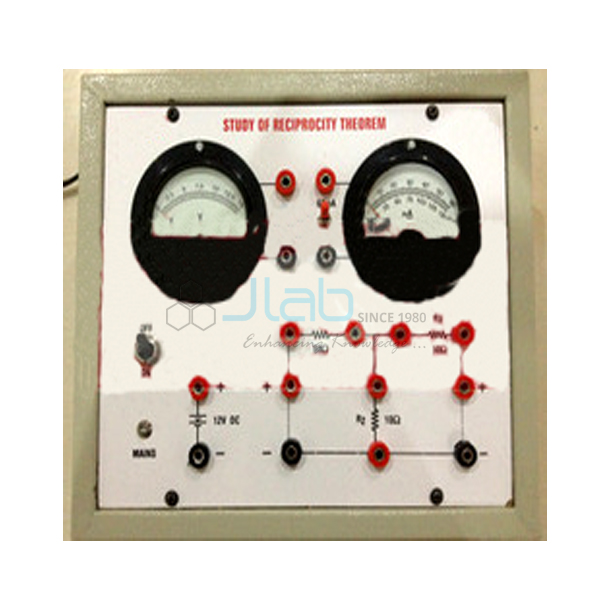

The Verification of Reciprocity Theorem apparatus (SKU JA-VONT-1132) demonstrates that in a linear network the current read at one branch due to a source in another is unchanged when the source and the meter swap places. It carries one fixed-output DC power supply of 12 V at 300 mA and two moving coil meters. The circuit diagram is printed on the front panel, and the supply, meters and resistances are brought out to terminals.
Specifications
The product data gives these values:
| Product | Verification of Reciprocity Theorem |
| SKU | JA-VONT-1132 |
| Theorem | Reciprocity |
| Power supply | One fixed-output DC, 12 V at 300 mA |
| Meters | Two moving coil meters |
| Panel | Circuit diagram printed on the front |
| Connections | Supply, meters and resistances on terminals |
Scope of supply and ordering
The unit is complete with supply and meters. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the reciprocity apparatus demonstrate?
That swapping the positions of the source and the meter in a linear network leaves the meter reading unchanged.
What supply does it use?
A fixed-output DC supply of 12 V at 300 mA.
Related products
- Verification of Superposition Theorem
- Verification of Thevenins Theorem
- Verification of Maximum Power Transfer Theorem in DC Circuits
- Verification of Network Theorems
More circuit theorem apparatus is in our scientific instrument range.
