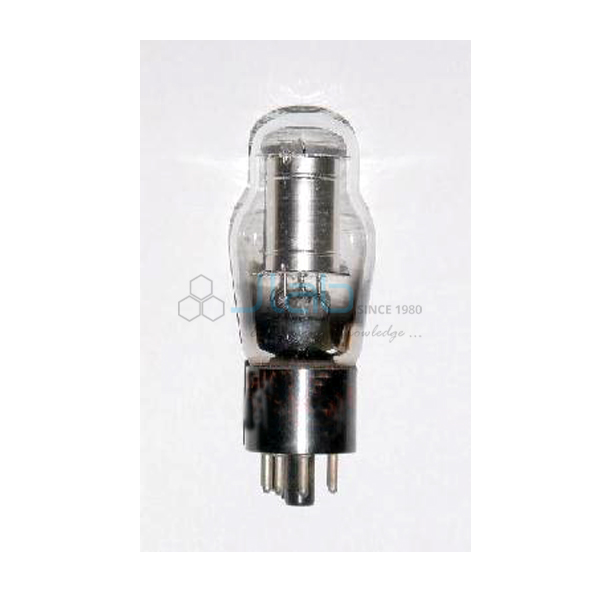

V R Tube Characteristics
Product Code : JA-COVT-1077
The V R Tube Characteristics apparatus (SKU JA-COVT-1077) is used to draw the characteristics of a VR, or voltage regulator, tube. This is a cold-cathode, gas-filled tube: once the gas ionises at its striking voltage, the voltage across the tube stays nearly constant over a range of current, which is what the plotted characteristic shows. The apparatus comes complete with its power supply and the tube mounted on a base.
Specifications
The listing gives these details:
| Product | V R Tube Characteristics |
| SKU | JA-COVT-1077 |
| Tube | VR (voltage regulator) tube, mounted on base |
| Tube type | Cold cathode, gas filled |
| Supplied with | Power supply |
Scope of supply and ordering
Supplied complete with power supply and mounted tube. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the V R Tube Characteristics apparatus plot?
The voltage-current characteristic of a VR (voltage regulator) tube.
Is a power supply included?
Yes, it comes complete with power supply and the tube mounted on a base.
