Unsaturated Soil Testing System
Product Code : JA-ST-9843

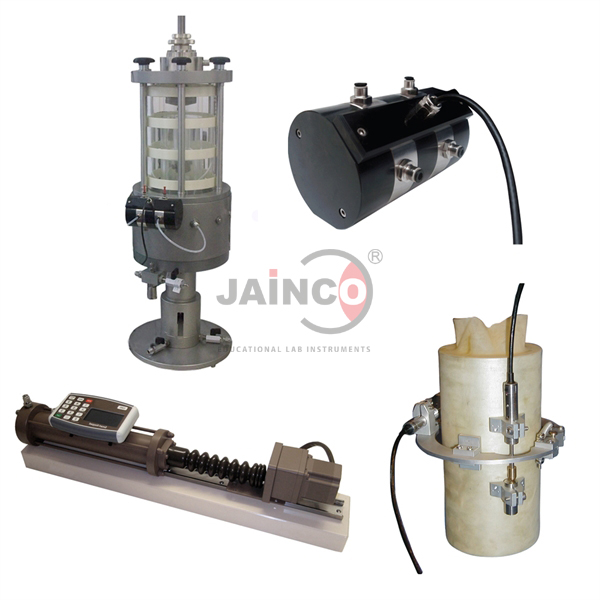

The Unsaturated Soil Testing System (SKU JA-ST-9843) extends conventional triaxial testing to soils from above the water table, so they can be tested under conditions close to their real stress state and degree of partial saturation. Existing triaxial systems, including equipment from other makers, can be modified for unsaturated testing. Four measurement methods are listed. It is supplied by JaincoLab.
Specifications
Measurement methods offered:
| Product | Unsaturated Soil Testing System |
| SKU | JA-ST-9843 |
| Method A | Direct volume measurement using an air pressure/volume controller |
| Method B | Inner cell |
| Method C | Double walled cell |
| Method D | On-sample strain transducers |
| Application | Unsaturated triaxial testing of soils above the water table |
Scope of supply and ordering
Name the method (A to D) and the triaxial system to be adapted; the conversion is quoted for that system. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
Can an existing triaxial system be adapted?
Yes. Triaxial testing systems, including equipment from other manufacturers, can be modified for unsaturated triaxial testing.
Which volume measurement methods are available?
Four: direct volume measurement with an air pressure/volume controller, an inner cell, a double walled cell, or on-sample strain transducers.
