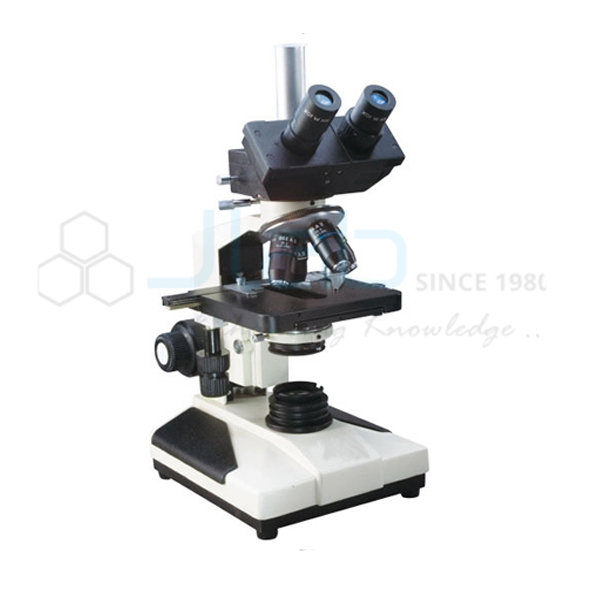

Trinocular Research Microscope
Product Code : JA-M-948
The Trinocular Research Microscope (SKU JA-M-948) combines a 45-degree inclined trinocular head, rotating through 360 degrees, with DIN achromatic 4x, 10x, 40x SL and 100x SL oil-immersion objectives on a quadruple nosepiece and DIN WF 10x eyepieces. A built-in graduated 135 x 140 mm mechanical stage scans slides over 50 x 70 mm, and a 6 V 20 W halogen lamp with daylight mirror provides the light. JaincoLab manufactures this trinocular research microscope for teaching and imaging work.
Specifications
Listed: trinocular head at 45 degrees, rotatable 360 degrees; quadruple nosepiece with click stops; built-in graduated mechanical stage 135 x 140 mm with 50 x 70 mm scan range; 6 V 20 W halogen lamp for 220/110 V and mirror attachment; four DIN achromatic objectives; DIN WF 10x eyepieces.
| Product | Trinocular Research Microscope |
| SKU | JA-M-948 |
| Head | Trinocular, 45-degree inclined, rotatable 360 degrees |
| Nosepiece | Quadruple with accurate centring and click stops |
| Stage | Built-in graduated mechanical stage 135 x 140 mm; scan range 50 x 70 mm |
| Illumination | 6 V 20 W halogen, 220/110 V; mirror attachment for daylight |
| Objectives | DIN achromatic 4x, 10x, 40x SL, 100x SL oil immersion |
| Eyepieces | DIN wide field WF 10x |
Applications of the trinocular research microscope
With a camera on the trinocular port, a department can photograph slides for records, show live images on a monitor during lectures and let students compare their own view with the displayed image, while oil immersion covers bacteria and blood cells.
- Photomicrography with a camera
- Live display of slides in lectures
- Oil-immersion microbiology
- Histology and pathology teaching
- College research and project work
Scope of supply and ordering
One unit is one trinocular research microscope with four DIN objectives, WF 10x eyepieces, halogen lamp and mirror attachment. Camera, adapter, accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the third port for?
The trinocular head has a port for attaching a camera; the camera and adapter are confirmed on the quotation.
Which objectives are fitted?
DIN achromatic 4x, 10x, 40x SL and 100x SL oil immersion.
What is the stage scan range?
The built-in 135 x 140 mm graduated stage scans slides over 50 x 70 mm.
