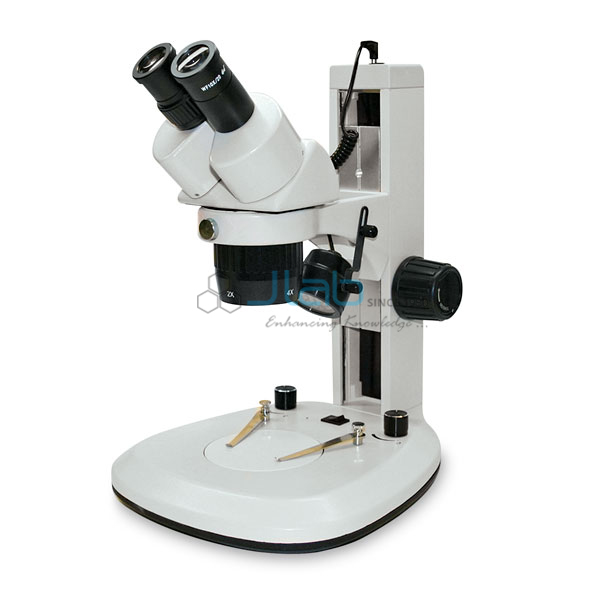

Dual Power Binocular Stereo Microscope Track Stand 2X and 4X Objective
Product Code : JA-M-8123
The Dual Power Binocular Stereo Microscope Track Stand 2X and 4X Objective (SKU JA-M-8123) is the highest-power track stand model supplied by JaincoLab. Its 2x and 4x objectives give 20x and 40x with WF10x high-eyepoint eyepieces, rising to 80x with optional WF20x eyepieces, and the long track stand keeps a 100 mm working distance for small or large samples.
Specifications
Values listed for the 2x/4x track stand model follow.
| Product | Dual Power Binocular Stereo Microscope Track Stand 2X and 4X Objective |
| SKU | JA-M-8123 |
| Magnification | 20x and 40x; 30x and 60x with optional WF15x; 40x and 80x with optional WF20x |
| Stand | Long track stand; large, thin base |
| Working distance | 100 mm |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x, high eyepoint; diopter +/-5 on left tube |
| Objectives | 2x and 4x on a turret |
| Illumination | 3-way LED with intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white plate and frosted glass plate; lock-on clips |
| Body and packing | Cast aluminium, grey enamel; fitted foam box, dust cover, manual |
Uses of the 20x and 40x track stand stereo microscope
- Fine dissection at 20x and 40x with room for tools
- Precision inspection of small parts and assemblies
- Mineral grains and fossils under incident light
- Up to 80x with the optional WF20x eyepieces
Scope of supply and ordering
Each unit ships in a fitted foam box with the WF10x pair, stage plates, dust cover and manual. Optional eyepieces, supply voltage, quantity and delivery are set out on the quotation.
Frequently asked questions
What is the highest magnification with this model?
80x, using optional WF20x eyepieces with the 4x objective; the standard WF10x pair gives 20x and 40x.
Why choose the track stand over the standard stand?
The track stand gives a 100 mm working distance, 20 mm more than the standard dual power models, which helps with taller samples and tools.
