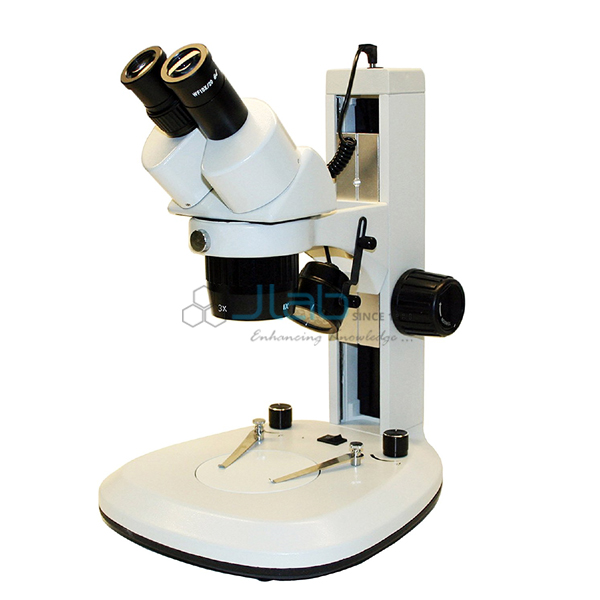

Dual Power Binocular Stereo Microscope Track Stand 1X and 2X Objective
Product Code : JA-M-8118
The Dual Power Binocular Stereo Microscope Track Stand 1X and 2X Objective (SKU JA-M-8118) is a stereo microscope supplied by JaincoLab on a long track stand, which gives a 100 mm working distance for small or large samples. The 1x and 2x objectives give 10x and 20x with high-eyepoint WF10x eyepieces, and the thin, large base keeps samples low and close to the light controls.
Specifications
The track stand version is listed with these values.
| Product | Dual Power Binocular Stereo Microscope Track Stand 1X and 2X Objective |
| SKU | JA-M-8118 |
| Magnification | 10x and 20x; 15x and 30x with optional WF15x; 20x and 40x with optional WF20x |
| Stand | Long track stand; large, thin base |
| Working distance | 100 mm |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x, high eyepoint; diopter on left tube, +/-5 |
| Objectives | 1x and 2x on a turret |
| Illumination | 3-way LED: transmitted, incident or dual, intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white plate and frosted glass plate; lock-on clips |
| Body and packing | Cast aluminium, grey enamel; fitted foam box, dust cover, instruction manual |
Uses of the track stand stereo microscope
- Larger specimens such as whole plants, fossils or assemblies under the 100 mm working distance
- Dissection where tools need extra room
- Biological and precision inspection work at 10x and 20x
- Samples kept low near the light controls on the thin base
Scope of supply and ordering
Each unit is packed in a fitted foam box with the WF10x pair, stage plates, dust cover and manual. Optional eyepieces, supply voltage, quantity and delivery are confirmed on the quotation.
Frequently asked questions
What does the track stand add?
The long track stand raises the working distance to 100 mm, against 80 mm on the standard dual power models, so larger or taller samples fit under the objective.
What diopter range is listed?
The left tube has diopter adjustment of +/-5 to balance the two eyes.
Related products
- Dual Power Binocular Stereo Microscope Track Stand 1X and 3X Objective
- Dual Power Binocular Stereo Microscope Track Stand 2X and 4X Objective
- Dual Power Binocular Stereo Microscope 1X and 2X Objective
- Dual Power Trinocular Stereo Microscope
Standard stand and zoom versions are in the microscope range.
Request a quote
Send the quantity, any optional eyepieces and the destination through the contact page to get a quotation for the track stand 1X and 2X objective stereo microscope. Buying under a laboratory tender? Use our tenders page.
