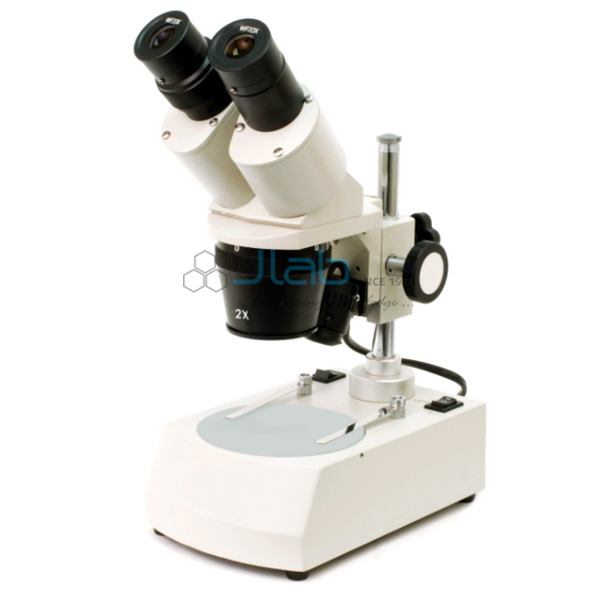

Tri Power LED Stereo Microscope
Product Code : JA-M-8102
The Tri Power LED Stereo Microscope (SKU JA-M-8102) is a binocular stereo microscope supplied by JaincoLab with three achromatic objectives on a turret, so one instrument covers three magnifications: 10x, 20x and 30x, or 20x, 30x and 40x, depending on the set ordered. The head is post-mounted and rotates 180 degrees, and top and bottom LED lights are switched separately.
Specifications
Listed values for the tri power stereo microscope are shown below.
| Product | Tri Power LED Stereo Microscope |
| SKU | JA-M-8102 |
| Magnification versions | 10x, 20x and 30x (1x, 2x, 3x objectives) or 20x, 30x and 40x (2x, 3x, 4x) |
| Head | Binocular, inclined 45 degrees; post-mounted, rotates 180 degrees; adjustable working distance; IPD 51-75 mm; diopter on left tube |
| Eyepieces | Paired WF10x with rubber eye guards, lockable with setscrew; 15x or 20x listed as alternatives |
| Objectives | Achromatic, parfocal and parcentred, three on a turret |
| Focusing | Rack and pinion with safety stop and tension adjustment; two knobs |
| Stage | 95 mm glass plate and 95 mm reversible black/white plate; locked-on clips |
| Illumination | Top incident LED (diagonally adjustable) and bottom transmitted LED; incident, transmitted or both, separately switched |
| Power | Mains, 3-wire safety cord |
Uses of the tri power stereo microscope
- Stepping from overview to detail on one specimen across three magnifications
- Insect and flower dissection in middle and secondary school
- Rock, mineral and small object study under the top light
- Pond organisms and thin sections over the bottom light
Scope of supply and ordering
The listing covers one stereo microscope in the objective set ordered, with the WF10x pair and both 95 mm plates. Units, packing and delivery schedule are set out on the quotation.
Frequently asked questions
Which objective sets are available?
Two sets are listed: 1x, 2x and 3x for 10x, 20x and 30x, or 2x, 3x and 4x for 20x, 30x and 40x with the WF10x eyepieces.
How does it differ from the Dual Power LED Stereo Microscope with Pillar Stand?
It carries three objectives on the turret instead of two; the head, stage and lighting are listed the same way.
Related products
- LED Top and Bottom Lights Binocular Stereo Microscope
- Series Binocular Stereo Microscope
- Dual Power Binocular Stereo Microscope
- Binocular Stereo Microscope Frosted Glass Plate 2x and 4x Objective
See the microscope range for zoom and digital stereo models.
Request a quote
To price the Tri Power LED Stereo Microscope, send the objective set, quantity and destination on the contact page. Buying under a laboratory tender? Use our tenders page.
