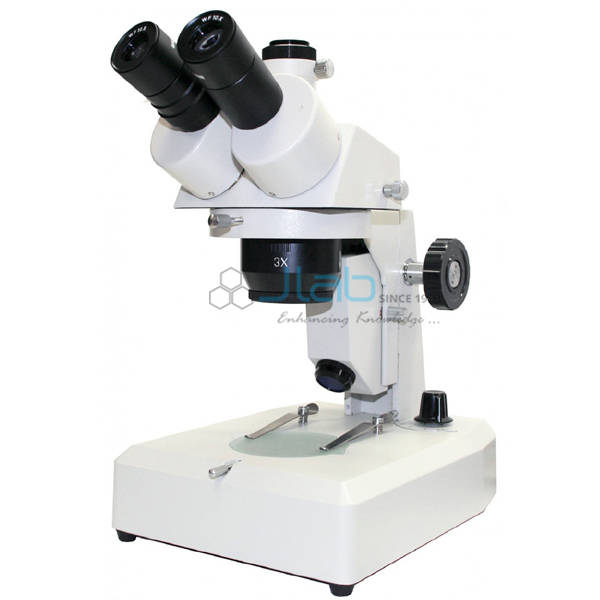

Dual Power Trinocular Stereo Microscope
Product Code : JA-M-8113
The Dual Power Trinocular Stereo Microscope (SKU JA-M-8113) is a stereo microscope supplied by JaincoLab whose trinocular head takes a digital eyepiece camera, so specimens can be recorded as well as viewed. Its turret carries one of three objective pairs for 10x and 20x, 10x and 30x, or 20x and 40x, and a halogen top light and fluorescent bottom light are dimmed separately.
Specifications
The listing gives three versions that differ only in the objective pair; common values are below.
| Product | Dual Power Trinocular Stereo Microscope |
| SKU | JA-M-8113 |
| Versions | Item 1: 1x and 2x objectives, 10x and 20x. Item 2: 1x and 3x, 10x and 30x. Item 3: 2x and 4x, 20x and 40x |
| Head | Trinocular, inclined 45 degrees, rotates 360 degrees; synchronised IPD adjustment 55-75 mm; diopter on left tube, right fixed; port for a digital eyepiece camera |
| Eyepieces | Paired WF10x, lockable with setscrew; WF15x and WF20x optional |
| Working distance | 80 mm |
| Focusing | Heavy-duty rack and pinion with slip clutch; two knobs with tension adjustment; 90 mm focus range |
| Stage | 75 mm frosted glass plate and 75 mm reversible black/white plate; locked-on spring clips |
| Illumination | Diagonally adjustable halogen top light and fluorescent bottom light, each dimmable; transmitted, incident or both |
| Size | 14 in high; base 7 x 8.75 in |
Uses of the dual power trinocular stereo microscope
- Recording dissections and whole specimens with a digital eyepiece camera
- Class display of live images from the trinocular port
- Opaque specimens under the halogen top light
- Translucent specimens over the fluorescent base light
Scope of supply and ordering
A unit is the trinocular stereo microscope with the objective pair ordered, the WF10x pair and both 75 mm plates. The camera, optional eyepieces, quantities and delivery are itemised on the quotation.
Frequently asked questions
Can a camera be fitted?
Yes. The trinocular head is listed for connection of a digital eyepiece camera; the camera is quoted separately.
What lighting does this model use?
A diagonally adjustable halogen light from above and a fluorescent light from below, each with its own switch and intensity control.
