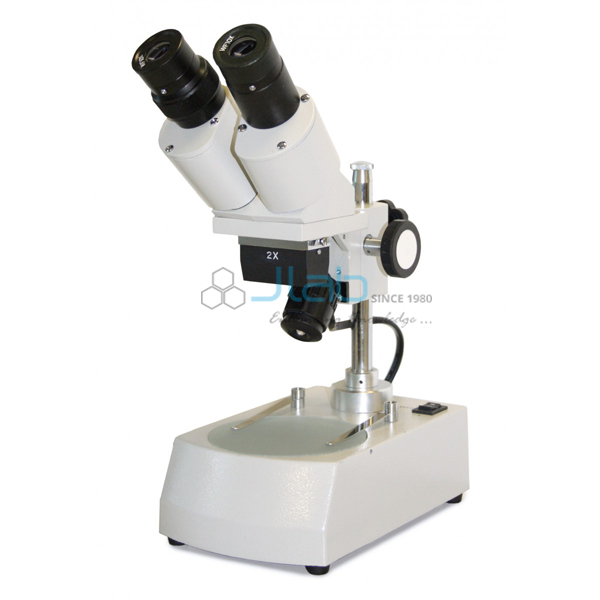

Binocular Stereo Microscope WF 10x and 20x Eyepieces
Product Code : JA-M-8088
The Binocular Stereo Microscope WF 10x and 20x Eyepieces (SKU JA-M-8088) is a low-power stereo microscope supplied by JaincoLab for viewing whole specimens in three dimensions. A parfocal 2x objective works with either the WF10x or the WF20x eyepiece pair, so this binocular stereo microscope gives 20x and 40x, and top and bottom LED lights can be used separately or together.
Specifications
Head, optics, focusing, stage, lighting and size values given in the listing are shown here.
| Product | Binocular Stereo Microscope WF 10x and 20x Eyepieces |
| SKU | JA-M-8088 |
| Head | Binocular, inclined 45 degrees; diopter adjustment on one tube; IPD 51-75 mm |
| Eyepieces | WF10x pair and WF20x pair, with eye guards |
| Objective | 2x, parfocal and parcentred |
| Magnification | 20x and 40x |
| Focusing | Rack and pinion coarse focus with safety stop and tension adjustment |
| Stage | Frosted glass plate and reversible black/white plate, both 95 mm diameter; pair of stage clips |
| Illumination | Top (reflected) and bottom (transmitted) LED; dual switch for top, bottom or both |
| Power | Listed as 110 V |
| Size and weight | 5 x 4 x 10 in; 6 lb |
Uses of the 20x and 40x stereo microscope
- Insects, seeds and flowers under the top light
- Thin or translucent specimens on the frosted glass plate under bottom light
- Simple dissections at 20x
- Coins, minerals and small parts at 40x
Scope of supply and ordering
One unit is the stereo microscope with both eyepiece pairs, the glass and black/white plates and stage clips. Supply voltage, quantities and delivery are confirmed on the quotation.
Frequently asked questions
How are 20x and 40x obtained?
The 2x objective is used with the WF10x pair for 20x or with the WF20x pair for 40x; both pairs come with eye guards.
Which lighting settings are available?
A dual switch selects the top reflected LED for solid objects, the bottom transmitted LED through the frosted glass plate, or both at once.
Which mains supply is listed?
The source lists 110 V. The supply version for the destination is confirmed on the quotation.
