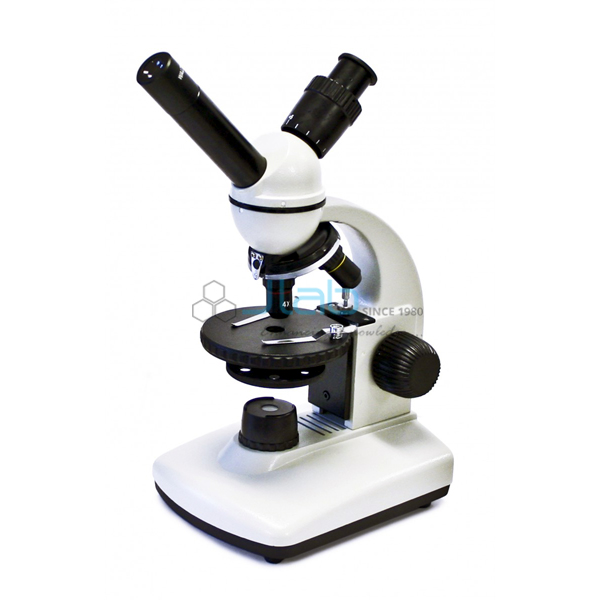

LED Corded/Cordless Dual View Microscope
Product Code : JA-M-8047
The LED Corded/Cordless Dual View Microscope (SKU JA-M-8047) is a cast metal student microscope supplied by JaincoLab with a dual view head and LED lighting built into the base. A locked-on WF10x eyepiece and achromatic 4x, 10x and retractable 40x objectives give 40x, 100x and 400x. It comes as a corded version or as a cordless version with rechargeable batteries, which makes this LED cordless dual view microscope practical where bench sockets are few.
Specifications
The listing specifies a dual view head, colour-coded achromatic objectives on a reverse nosepiece and coarse-only rack and pinion focusing with a slip clutch at both ends of travel.
| Product | LED Corded/Cordless Dual View Microscope |
| SKU | JA-M-8047 |
| Head | Dual view head, inclined 45 degrees, rotates 360 degrees |
| Eyepiece | Locked-on WF10x with pointer |
| Nosepiece | 3-position reverse nosepiece with positive click stops |
| Objectives | Achromatic 4x, 10x, 40xR (retractable); colour-coded, parcentred |
| Magnification | 40x, 100x, 400x |
| Focusing | Coarse; rack and pinion with slip clutch at both ends of travel; safety rack stop |
| Stage | 3.5 in round gliding stage, 360-degree rotation, stage clips |
| Illumination | Built-in LED with on/off switch; LED life 10,000 hours; 6-hole rotating disc diaphragm |
| Power | Corded version: three-wire grounded cord. Cordless version: 9 V NiMH rechargeable batteries with plug-in adapter; full charge in 8 hours, up to 50 hours per charge |
| Size | 12 in high; base 6.5 x 5.25 in; all-metal construction |
Uses of the LED dual view microscope
It covers routine slide work in school biology at the three standard magnifications.
- Prepared slides of plant and animal cells at 100x and 400x
- Temporary mounts such as onion peel and cheek cells
- Pond water samples and simple micro-organisms
- Classes in rooms without bench sockets, using the cordless version
Scope of supply and ordering
One unit is a single microscope in either the corded or the cordless version; the cordless version includes its plug-in adapter. Quantities, packing and delivery time are set out on the quotation.
Frequently asked questions
How does the cordless version run?
It uses 9 V rechargeable NiMH batteries charged through the included plug-in adapter. The listing gives a full recharge in 8 hours and up to 50 hours of continuous use per charge; the corded version uses a three-wire grounded mains cord instead.
Which magnifications does it give?
With the locked-on WF10x eyepiece, the achromatic 4x, 10x and retractable 40x objectives give 40x, 100x and 400x.
Which charger voltage is listed?
The source lists a charger for a 120 V outlet. The charger or cord for the mains supply at the destination is confirmed on the quotation.
Related products
- LED Corded/Cordless Beginner Monocular Microscope
- Dual View Coaxial Focusing Beginner Microscope
- Digital Camera Microscope with Dual View
- Cordless Compound Monocular Microscope
Other student and laboratory models are listed in the microscope range.
Request a quote
Send the quantity, the corded or cordless version and your delivery destination through the contact page for a quotation on the LED Corded/Cordless Dual View Microscope. Institutions and contractors buying under a tender can also reach us via the tenders page.
