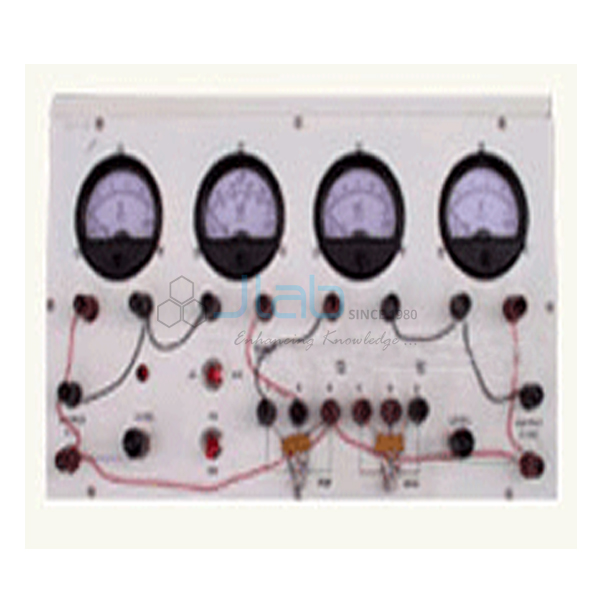

Transistor Characteristics Apparatus
Product Code : JA-SCD-1079
The Transistor Characteristics Apparatus (SKU JA-SCD-1079) is used to plot the input and output characteristics of PNP and NPN transistors, in both common base and common emitter modes. One PNP and one NPN transistor are mounted behind the panel. Two regulated DC supplies, 0-10 V at 500 mA or 50 mA and 0-1 V at 30 mA, provide the bias, and four round meters read the voltages and currents.
Specifications
The listing gives these details:
| Product | Transistor Characteristics Apparatus |
| SKU | JA-SCD-1079 |
| Characteristics | Input and output, common base and common emitter |
| Transistors | One PNP and one NPN, mounted behind the panel |
| DC supply 1 | 0-10 V, 500 mA/50 mA |
| DC supply 2 | 0-1 V, 30 mA |
| Meters | Four round meters |
| Size | 15 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which characteristics can be plotted with this apparatus?
Input and output characteristics of PNP and NPN transistors in common base and common emitter modes.
Which transistors are fitted?
One PNP and one NPN transistor, mounted behind the panel.
