Voltage Stabilization Characteristics of Zener Diode
Product Code : JA-SCD-1083

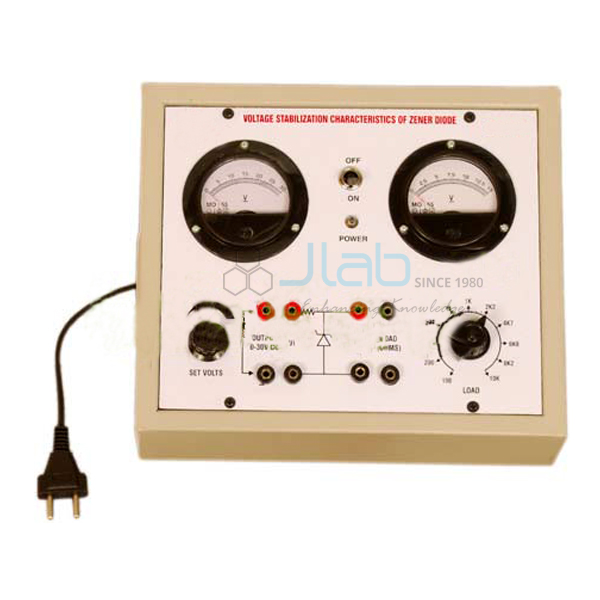

The Voltage Stabilization Characteristics of Zener Diode apparatus (SKU JA-SCD-1083) shows how a Zener diode holds the output voltage steady. Two curves are plotted: output voltage against input voltage, and output voltage against load. A DC power supply is built in, two round meters read the input and output voltages, and the Zener diode is mounted on the panel with connections on terminals.
Specifications
The listing gives these details:
| Product | Voltage Stabilization Characteristics of Zener Diode |
| SKU | JA-SCD-1083 |
| Characteristics | Input vs output voltage; output voltage vs load |
| Power supply | DC |
| Meters | Two round meters, input and output voltage |
| Diode | One Zener diode on panel, terminals |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
