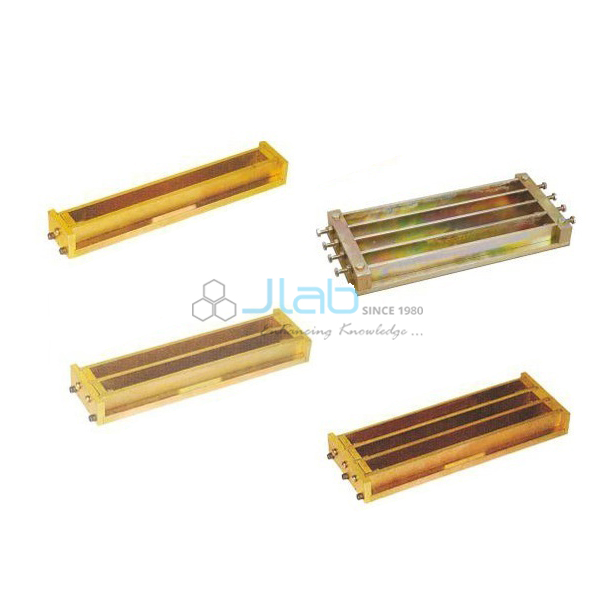

Test Bar Moulds
Product Code : JA-M-8894
The Test Bar Moulds (SKU JA-M-8894) cast mortar bars and concrete prisms for length-change measurements. Contact points embedded at each end give a 254 mm (10 inch) gauge length between their inner ends, so the hardened bar can be read on a length comparator. These test bar moulds are made of plated steel in two versions: a two-gang mould for 25.4 x 25.4 x 254 mm bars and a single mould for 101.6 x 101.6 x 254 mm prisms. They are made by JaincoLab.
Specifications
Both versions are plated steel with a 254 mm gauge length; net weights are listed as 9.1 kg and 10 kg, and the contact points measure 6.3 mm diameter by 19 mm long, supplied in packs of 100.
| Product | Test Bar Moulds |
| SKU | JA-M-8894 |
| Construction | Plated steel |
| Gauge length | 254 mm (10 in) between inner ends of contact points |
| Two-gang mould | 25.4 x 25.4 x 254 mm (1 x 1 x 10 in) |
| Single mould | 101.6 x 101.6 x 254 mm (4 x 4 x 10 in) |
| Net weight | 9.1 kg (20 lb) / 10 kg (22 lb), as listed |
| Contact points | 6.3 mm dia. x 19 mm long, pack of 100 |
Applications of the test bar moulds
Bars cast with fixed contact points let small changes in length be measured over weeks of storage, the basis of shrinkage and expansion tests.
- Drying shrinkage of concrete prisms
- Length change of mortar bars in storage
- Cement-aggregate reactivity tests
- Use with a length comparator in cement testing laboratories
Scope of supply and ordering
The listing covers test bar moulds in the two-gang or single version, from JaincoLab; contact points are supplied in packs of 100. The version and quantities are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Moulds are supplied singly, in sets or in bulk for colleges and tender orders.
Frequently asked questions
What is the gauge length?
254 mm (10 inches) between the inner ends of the embedded contact points.
Which sizes are available?
A two-gang mould for 25.4 x 25.4 x 254 mm bars and a single mould for 101.6 x 101.6 x 254 mm prisms.
How are contact points supplied?
6.3 mm diameter by 19 mm long, in packs of 100.
