Brass Ring Mould Pat Test
Product Code : JA-M-8899

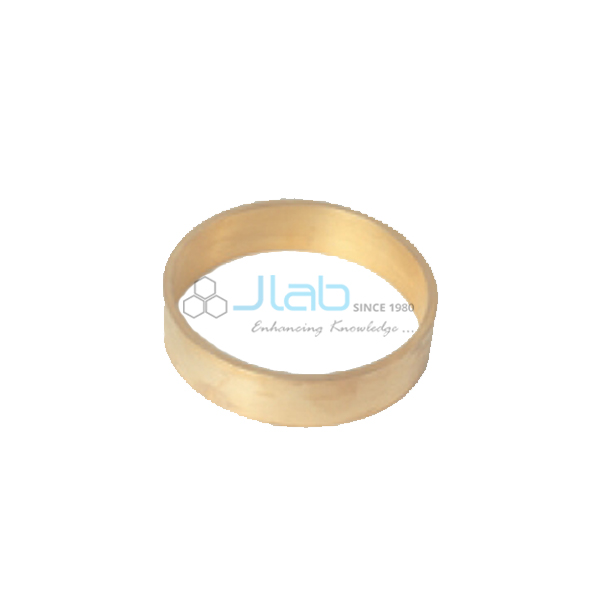

The Brass Ring Mould Pat Test (SKU JA-M-8899) is used to determine the soundness of hydrated lime and gypsum plasters. A pat of the material is formed in the ring on its glass plate, cured and then examined for pops, pits, cracks or distortion that show unsound material. The brass ring mould for pat test measures 100 mm in diameter and 5 mm deep with a 5° internal taper, and three sets are needed for one test. It is made by JaincoLab.
Specifications
The ring is 100 mm in diameter and 5 mm deep with a 5° internal taper and is supplied with a glass plate; three sets are required per test.
| Product | Brass Ring Mould Pat Test |
| SKU | JA-M-8899 |
| Mould size | 100 mm dia. x 5 mm deep |
| Internal taper | 5° |
| Included | Glass plate |
| Sets per test | Three |
| Test | Soundness of hydrated lime and gypsum plasters |
Applications of the brass ring mould
Unsound lime or plaster can expand after it is applied, and the pat test shows the problem on small samples before the material is used.
- Soundness of hydrated lime
- Soundness of gypsum plasters
- Building materials practicals in civil engineering and architecture courses
- Quality checks in materials testing laboratories
Scope of supply
The listing covers one brass ring mould with glass plate, from JaincoLab; three sets are needed per test. Accessories, spares and quantities are confirmed on the quotation.
Packing, MOQ and lead time
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Moulds are supplied singly or in sets of three and in bulk for colleges and tender orders.
Frequently asked questions
What size is the ring?
100 mm diameter and 5 mm deep, with a 5° internal taper.
How many are needed for one test?
Three sets.
Is a glass plate included?
Yes.
What should a quotation request include?
Send the SKU JA-M-8899, the number of sets and the delivery destination.
Related products
Other lime, plaster and cement testing items are in the Materials range; chemistry apparatus is in the chemistry lab equipment catalogue.
Request a quote
To request a quotation for the Brass Ring Mould Pat Test, send the quantity and the delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-M-8899.
