Rebound Hammer
Product Code : JA-M-8891

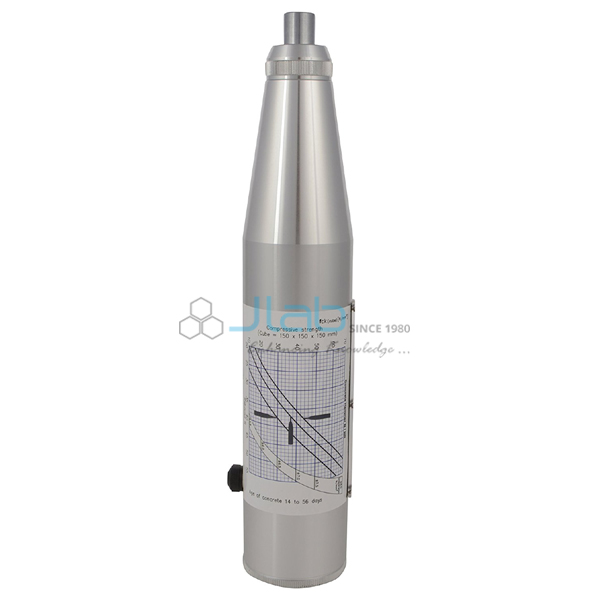

The Rebound Hammer (SKU JA-M-8891), also known as a Schmidt hammer or Swiss hammer, estimates the strength of concrete or rock from a surface hardness test. A spring-loaded mass strikes the surface and the rebound reading relates to compressive strength. This concrete rebound hammer covers 10 to 70 N/mm2 with an impact energy of 2.207 Nm and is supplied with a calibration anvil and a carrying case for storage. It is made by JaincoLab.
Specifications
The hammer is rated for a compressive strength range of 10 to 70 N/mm2 with an impact energy of 2.207 Nm, and comes with a calibration anvil and carrying case.
| Product | Rebound Hammer |
| SKU | JA-M-8891 |
| Compressive strength range | 10-70 N/mm2 |
| Impact energy | 2.207 Nm |
| Supplied with | Calibration anvil; carrying case |
| Test | Surface hardness of concrete or rock |
Applications of the concrete rebound hammer
A rebound test gives a quick, non-destructive check of concrete quality on site or in the laboratory, and readings are compared across a structure.
- Non-destructive strength estimates on concrete members
- Comparing concrete quality across a structure
- Hardness testing of rock
- Concrete technology practicals in civil engineering courses
- Condition surveys of existing concrete in field training
Scope of supply and ordering
The listing covers one rebound hammer with calibration anvil and carrying case, from JaincoLab. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Hammers are supplied singly or with concrete testing sets for colleges and tender orders.
Frequently asked questions
What range does it cover?
Compressive strengths from 10 to 70 N/mm2.
What is the impact energy?
2.207 Nm.
Is a calibration anvil included?
Yes, with a carrying case for storage.
