Solar Cell Characteristics Apparatus
Product Code : JA-OED-1061

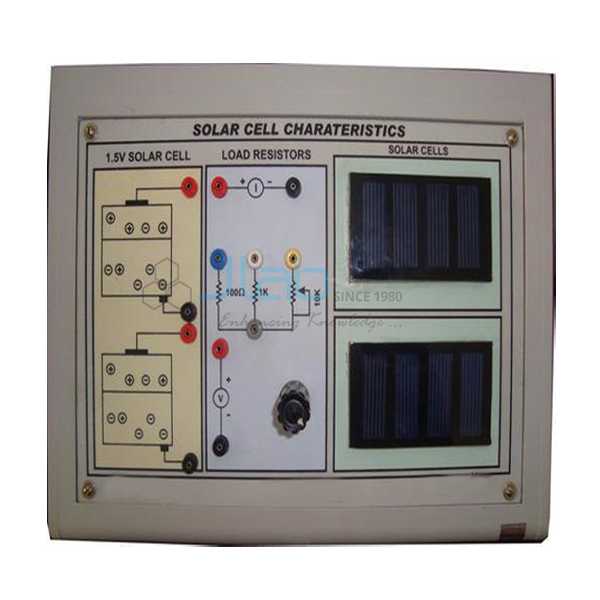

The Solar Cell Characteristics Apparatus (SKU JA-OED-1061) is used to draw the voltage and current characteristics of a solar cell. The mounted cell is lit by a lamp house with its own power supply, and the cell output is read on moving-coil meters fitted on a panel, which also carries a power supply. Connecting leads are included, so the circuit can be wired for the V-I curve.
Specifications
Parts of the apparatus as listed:
| Product | Solar Cell Characteristics Apparatus |
| SKU | JA-OED-1061 |
| Cell | Solar cell, mounted |
| Light source | Lamp house with power supply |
| Meters | Moving-coil meters on panel, with power supply |
| Accessories | Connecting leads |
| Activity | V and I characteristics of a solar cell |
Scope of supply and ordering
The listing covers the mounted cell, lamp house, meter panel and leads. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the Solar Cell Characteristics Apparatus measure?
The voltage and current characteristics of a solar cell under illumination.
How is the cell lit?
By a lamp house with its own power supply.
