Triaxial Cells for Soil
Product Code : JA-ST-9839

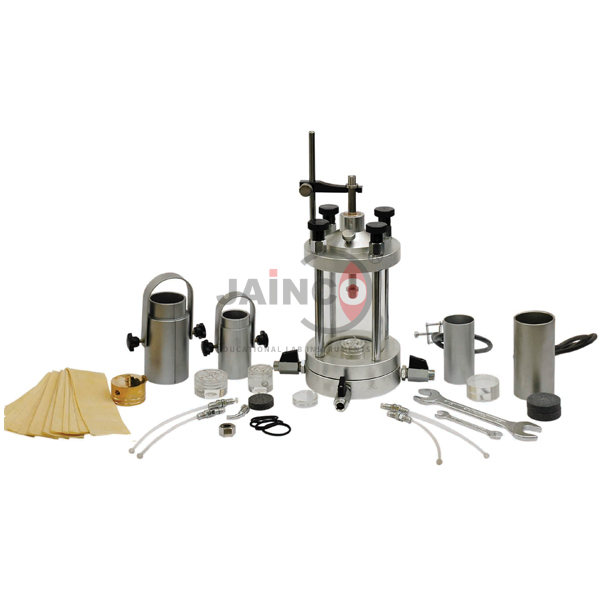

Triaxial Cells for Soil (SKU JA-ST-9839) hold the soil specimen under cell pressure during triaxial tests. The cell cylinders are acrylic, with those for use up to 20 bar usually reinforced by bands, and each base has four take-off positions for cell pressure, pore water pressure and drainage or back pressure. The cells are made from corrosion-resistant material, with a stainless steel plunger in a finished bushing and no-volume-change valves throughout.
Specifications
Cell construction and models:
| Product | Triaxial Cells for Soil |
| SKU | JA-ST-9839 |
| Cell cylinder | Acrylic plastic; band-reinforced for use up to 20 bar (20 kg/cm²) |
| Base take-offs | Four: cell pressure, pore water pressure, drainage or back pressure |
| Plunger | Stainless steel, in a finished bushing |
| Valves | No-volume-change type |
| Model 1 | For specimens 38 mm dia x 76 mm long and 50 mm dia x 100 mm long |
| Model 2 | For specimens 38 mm dia x 76 mm long |
| Universal triaxial cell | Stationary bushing, 10 bar; accepts base adaptors for a range of specimen sizes |
Uses of triaxial cells for soil
- Unconsolidated undrained, consolidated undrained and consolidated drained triaxial tests
- Pore water pressure measurement through the base take-offs
- Testing several specimen sizes in one universal cell with base adaptors
Scope of supply and ordering
Choose the cell model and specimen sizes; base adaptors for the universal cell are itemised on the quotation. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What pressure can the cells take?
Cells for use up to 20 bar (20 kg/cm²) are usually band-reinforced; the universal cell with stationary bushing is rated at 10 bar.
Which specimen sizes are covered?
One model takes 38 mm x 76 mm and 50 mm x 100 mm specimens, another takes 38 mm x 76 mm, and the universal cell accepts base adaptors for a range of sizes.
What are the four base take-offs for?
Cell pressure, pore water pressure, and drainage or back pressure.
