Resistances in Series and Parallel Apparatus
Product Code : JA-VOVLACOS-1102

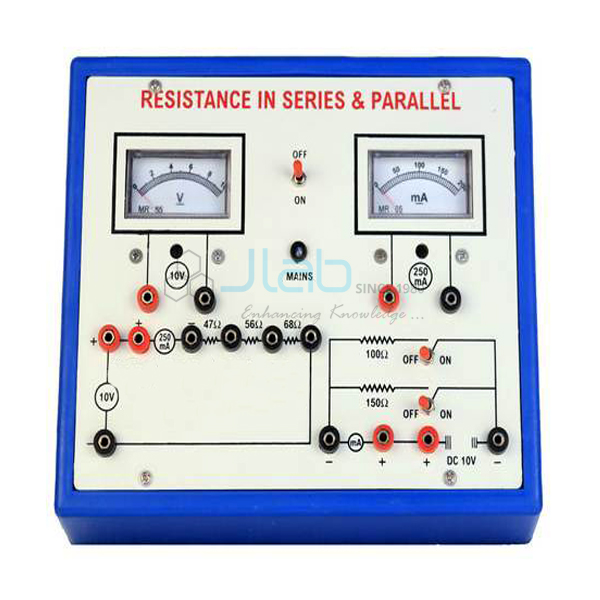

The Resistances in Series and Parallel Apparatus (SKU JA-VOVLACOS-1102) is used to verify how resistances behave when connected in series and in parallel. The circuit diagram for both connections is printed on the panel with the resistances mounted along it, and two moving-coil meters read the voltage and current, so the equivalent resistance can be worked out and checked against the calculated value.
Specifications
The listing gives these details:
| Product | Resistances in Series and Parallel Apparatus |
| SKU | JA-VOVLACOS-1102 |
| Meters | Two moving-coil meters, voltage and current |
| Panel | Series and parallel circuit diagram printed |
| Resistances | Mounted along the circuit |
| Size | 10 x 8 x 3 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the series and parallel apparatus verify?
The properties of resistances when connected in series and in parallel.
Which meters are fitted?
Two moving-coil meters for voltage and current.
