Half Wave, Full Wave and Rectifier Apparatus
Product Code : JA-VOVLACOS-1113

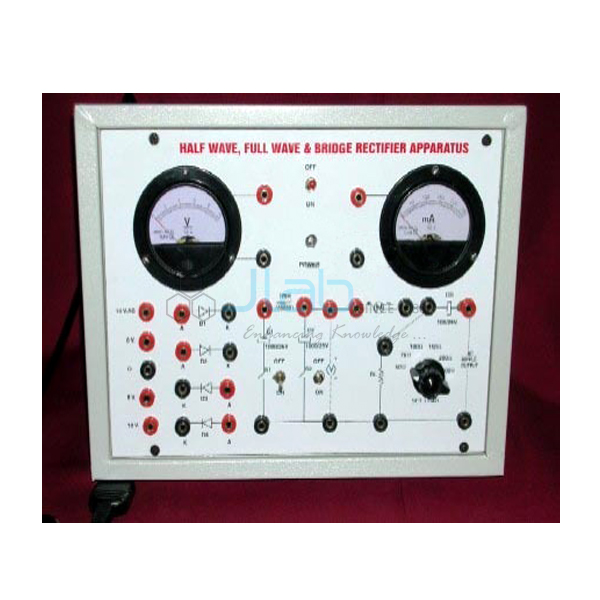

The Half Wave, Full Wave and Rectifier Apparatus (SKU JA-VOVLACOS-1113) is used to study the efficiency and ripple factor of half wave, full wave and bridge rectifiers on load, and the effect of filters. An AC supply feeds the junction diodes, a filter circuit is included, load resistances are selected with toggle switches, and two meters read the output voltage and current. The listing names a digital AC millivoltmeter as an optional accessory for measuring the ripple.
Specifications
The listing gives these details:
| Product | Half Wave, Full Wave and Rectifier Apparatus |
| SKU | JA-VOVLACOS-1113 |
| Power supply | AC |
| Rectifiers | Junction diodes for half wave, full wave and bridge |
| Filter | Filter circuit included |
| Load | Resistances selected by toggle switches |
| Meters | Two: output voltage and current |
| Optional accessory | Digital AC millivoltmeter |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
The AC millivoltmeter is optional and quoted separately. Quantities and packing are confirmed on the quotation.
